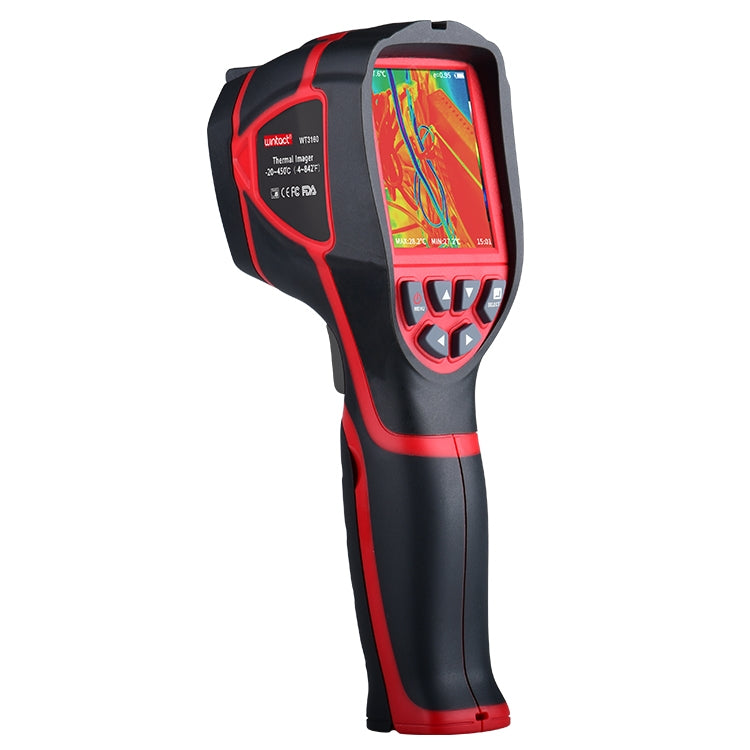

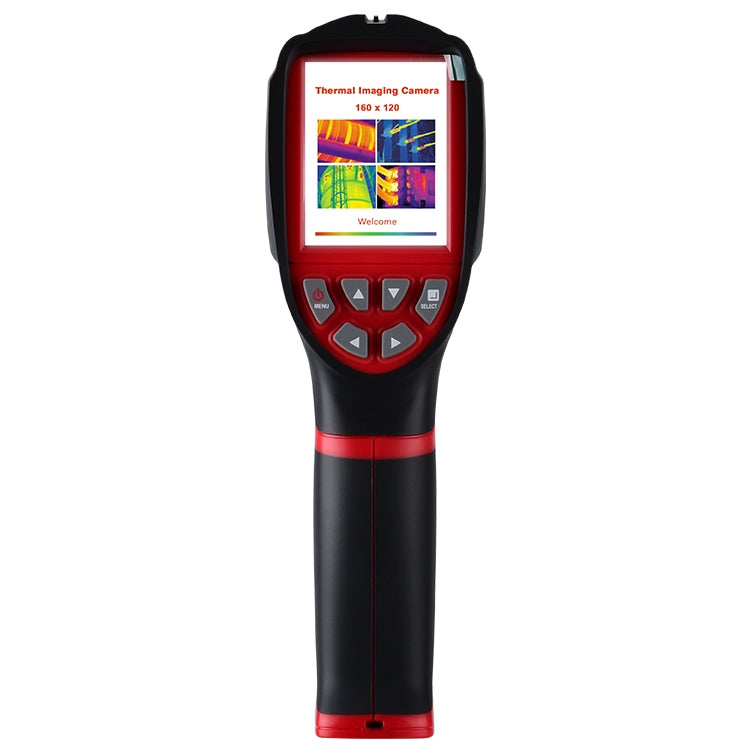

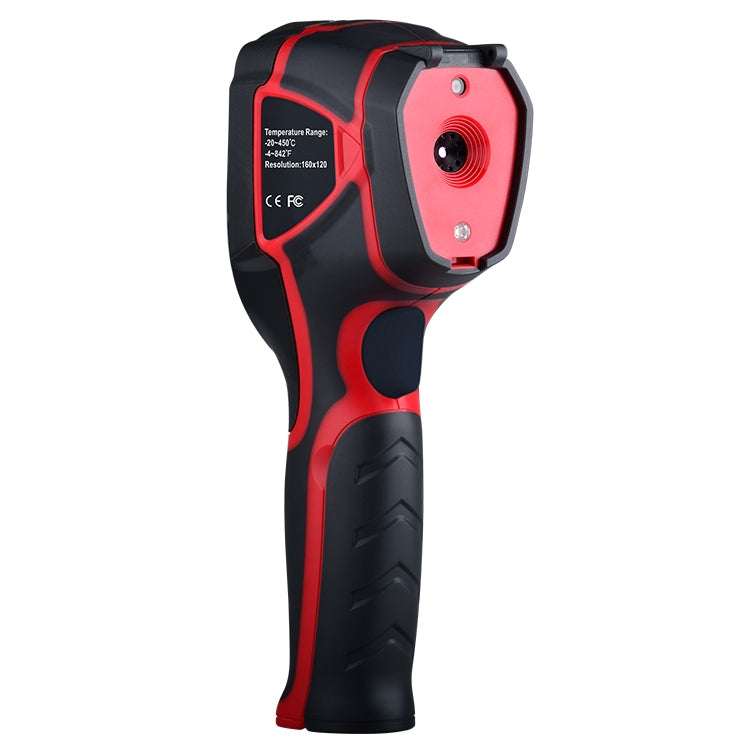

Wintact WT3160 Infrared Thermal Imager Camera
Wintact WT3160 Infrared Thermal Imager Camera
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from South Africa • No import duties
Ships from China (Standard) • Import tax and duties included
Ships from China (Standard) • Import tax and duties excluded
Ships from Hong Kong (Direct) • Import tax and duties excluded
Description
The Wintact WT3160 is an infrared thermal imager camera designed for surface temperature measurement and real-time thermal imaging. It is suitable for applications in electric power, electronic manufacturing, and industrial testing, allowing for efficient detection of potential problems without interrupting operations.
- Product Type: Infrared Thermal Imager Camera
- Material: Durable construction

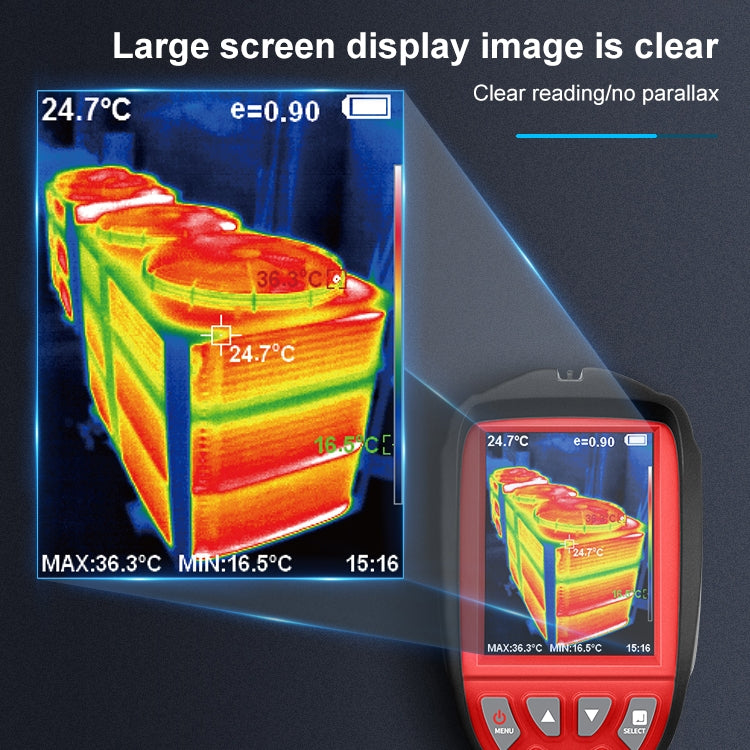

- Display: 2.8-inch full-angle TFT display
- Infrared Image Resolution: 220x160
- Visible Image Resolution: 300,000 pixels
- LCD Resolution: 320x240
- Field of View: 35x26 degrees
- Temperature Measurement Range: -20 to 450 degrees Celsius
- Measurement Accuracy: +/-2 degrees Celsius/+/-2% (above 300 degrees Celsius: +/-5%)
- Focus Distance: 0.5-70 meters
- Emissivity: Adjustable from 0.01 to 1.00
- Thermal Image Frame Rate: 9 Hz
- Wavelength Coverage: 8-14um
- Focus Mode: Fixed
- Palette Options: Rainbow, iron oxide red, cool color, black and white, white and black
- Storage Capacity: Built-in 3G (stores over 20,000 images)
- Dimensions: 69.4 x 225 x 93.4 mm
- Weight: 329.1 g
