Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)

Name: Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4(EU Plug)
Brand: WAVESHARE
SKU: DIY0234EU
Price: 2519.00 ZAR
Availability: InStock

R 2,519.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

About The Protuct

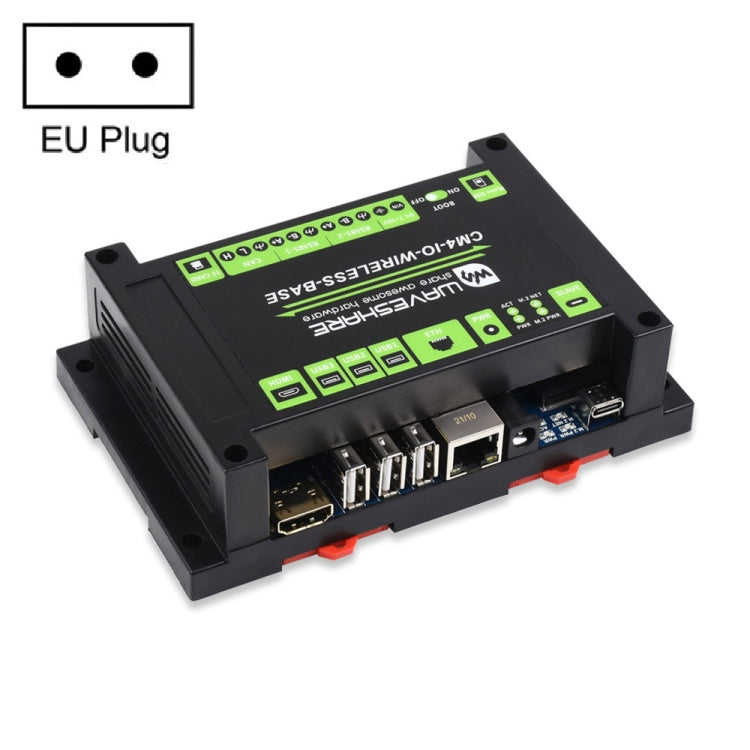

This is an industrial expansion module based on Raspberry Pi CM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G / LoRa wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.

Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.

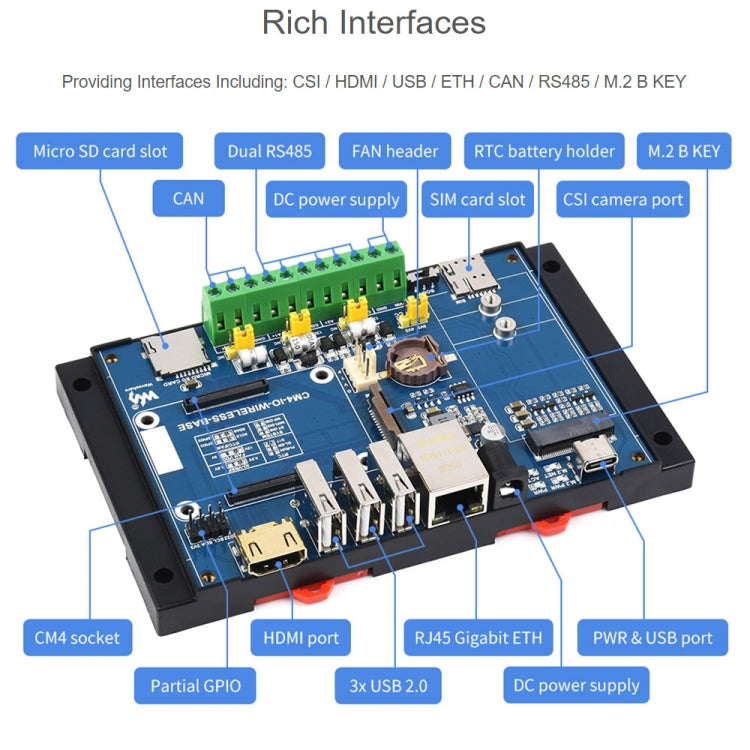

Specifications

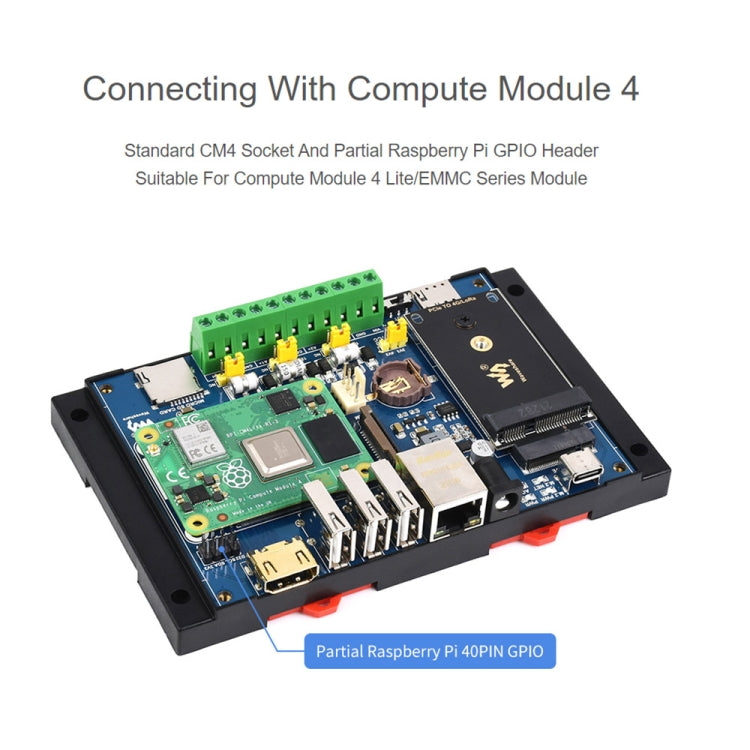

1. CM4 socket: For all variants of Compute Module 4
2. Networking:
- Gigabit Ethernet RJ45
- M.2 B KEY / Mini-PCIe (via adapter), for connecting 5G / 4G / LoRa wireless module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB: USB 2.0 x 3
4. PIN header: Non-isolated RS485 x 2, non-isolated CAN x 1, some GPIO pins
5. Camera: MIPI CSI-2 x 1 (15pin 1.0mm FPC connector)
6. Video: HDMI x 1, support 4K 30fps output
7. RTC: Real-time clock with battery socket and ability to wake Compute Module 4
8. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
9. Fan header: 5V/12V, allows speed adjustment and measurement
10. Power input: 5V or 7~36V
11. Dimensions: 145 x 90 x 40mm

Package List
1. CM4-IO-WIRELESS-BASE x 1
2. PCIe to 4G/LoRa adapter x 1
3. Screwdriver x 1
4. Screws pack x 1
5. 12V 2A power adapter x 1
