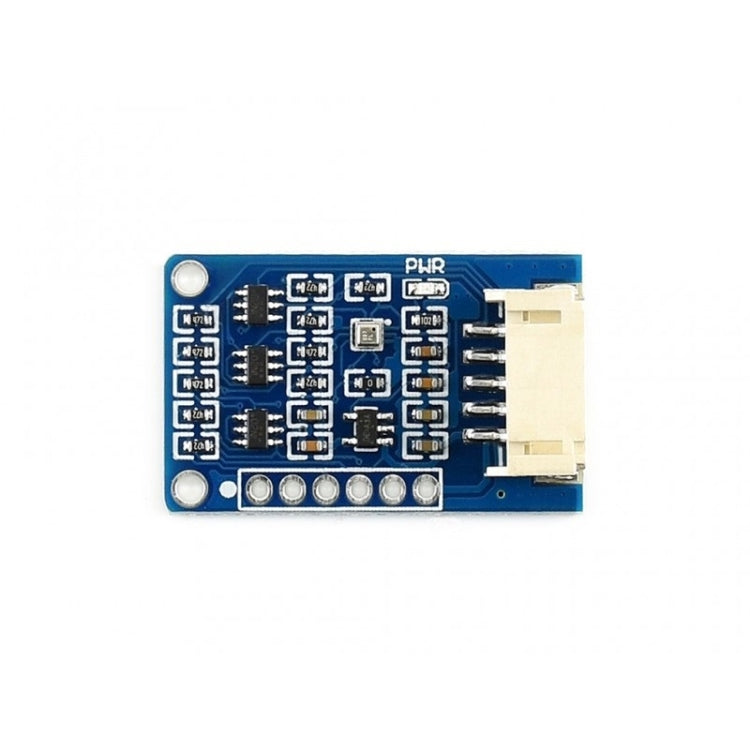

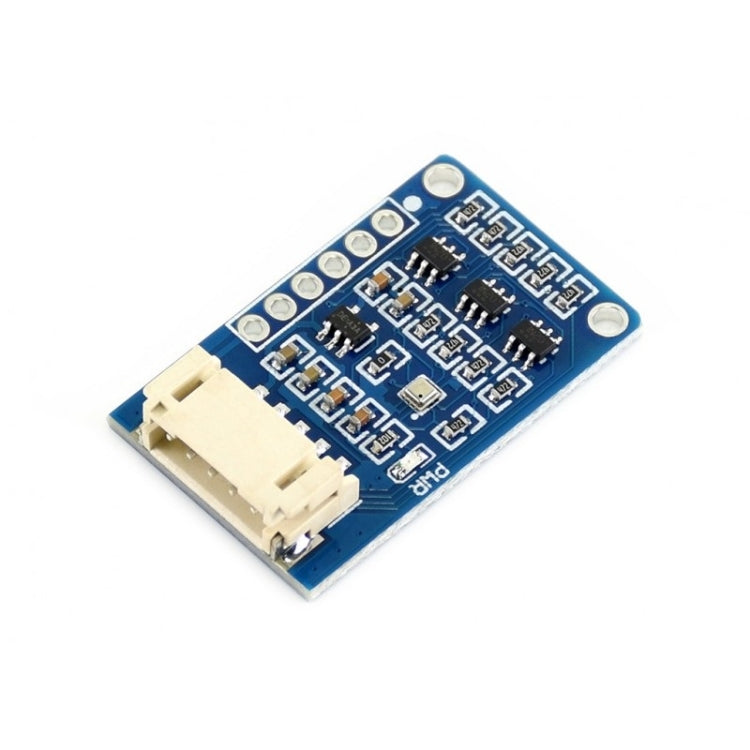

Waveshare BMP388 High Precision Barometric Pressure Sensor, Accurate Altitude Tracing
Waveshare BMP388 High Precision Barometric Pressure Sensor, Accurate Altitude Tracing
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
Overview
1. This is a 24-bit high precision barometric pressure sensor, which allows accurate altitude tracing, as well as barometric pressure / temperature measuring. It supports both I2C and SPI interfaces, also is compatible with 3.3V/5V voltage levels.
2. Due to its ultra small form factor, low power consumption, low noise and high precision, the BMP388 Barometric Pressure Sensor is suited for applications such as drones, accurate altimeter, environment monitoring, and IoT projects, and so on.
Features
1. Supports I2C (default) / SPI interface
2. Onboard voltage level translator, compatible with 3.3V/5V operating voltage
3. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
1. Operating voltage: 3.3V/5V
2. Communication interface: I2C/SPI
3. Barometric pressure operation range: 300~1250hPa
4. Barometric pressure absolute accuracy: +/-0.40hPa (@900~1100hPa, 25~40 degree C)
5. Barometric pressure relative accuracy: +/-0.08hPa (@900~1100hPa, 25~40 degree C)
6. Temperature coefficient offset: ±0.75Pa/K (@700~1100hPa, -20~65 degree C)
7. Temperature absolute accuracy: +/-0.5 degree C (0~65 degree C)
8. Possible resolution: 0.016Pa (high precision mode)
9. Possible sampling rate: 200Hz
10. Operating voltage: -40~85 degree C
11. Dimension: 32mm × 20mm
12. Mounting hole size: 2.0mm

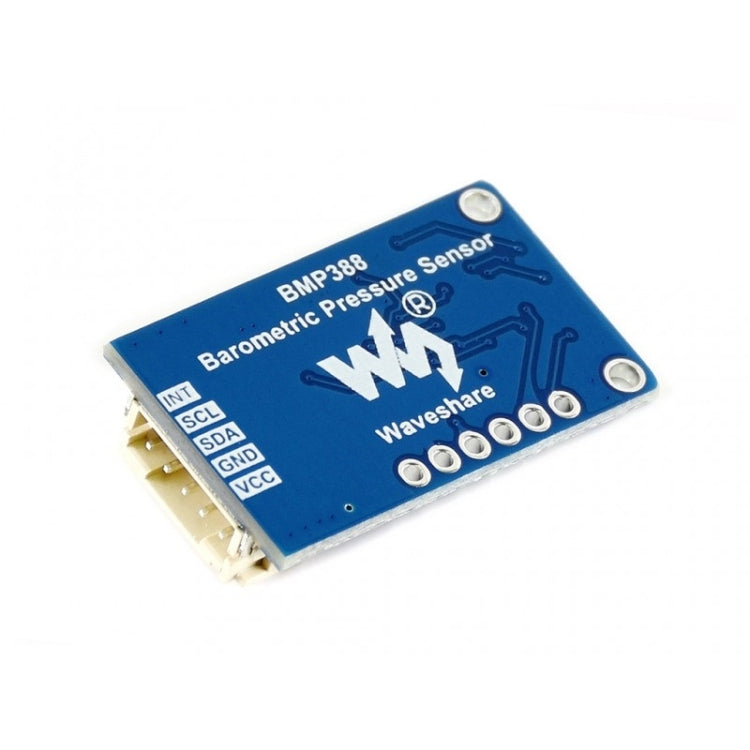

Pinouts
1. VCC: 3.3V/5V power supply
2. GND: Ground
3. SDA: I2C data
4. SCL: I2C clock
5. INT: Interrupt output, can be connected to I/O
Package Contents
1. BMP388 Barometric Pressure Sensor x1

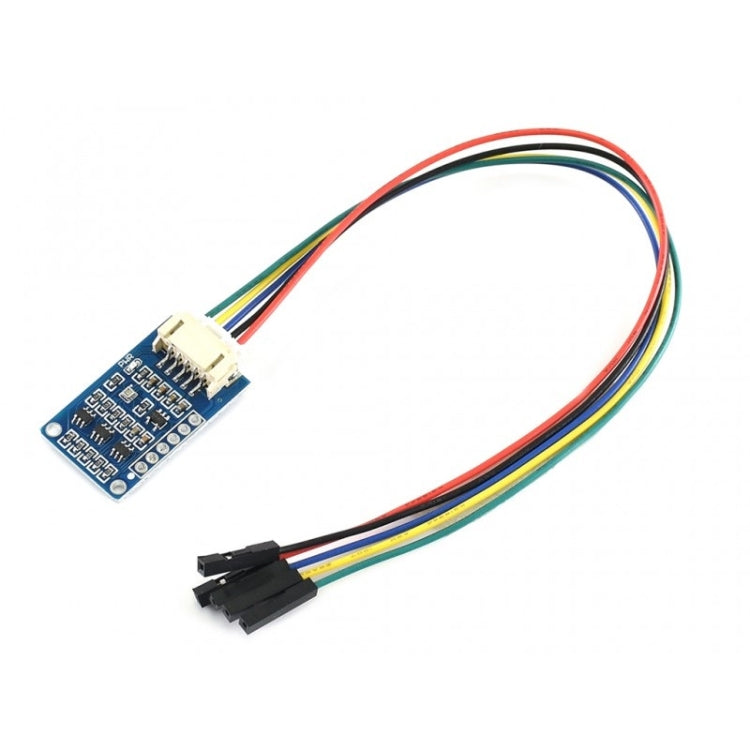

2. PH2.0 5PIN wire x1
