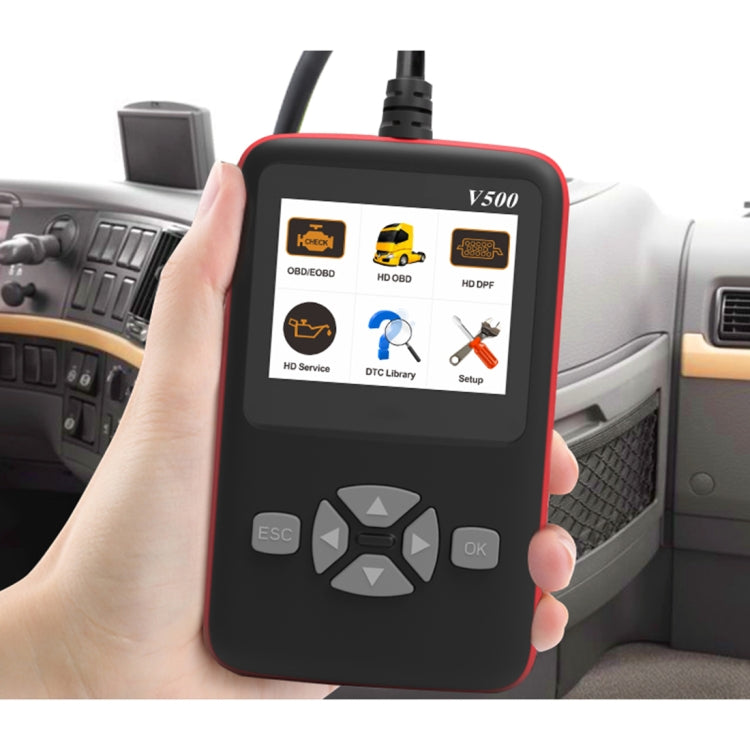

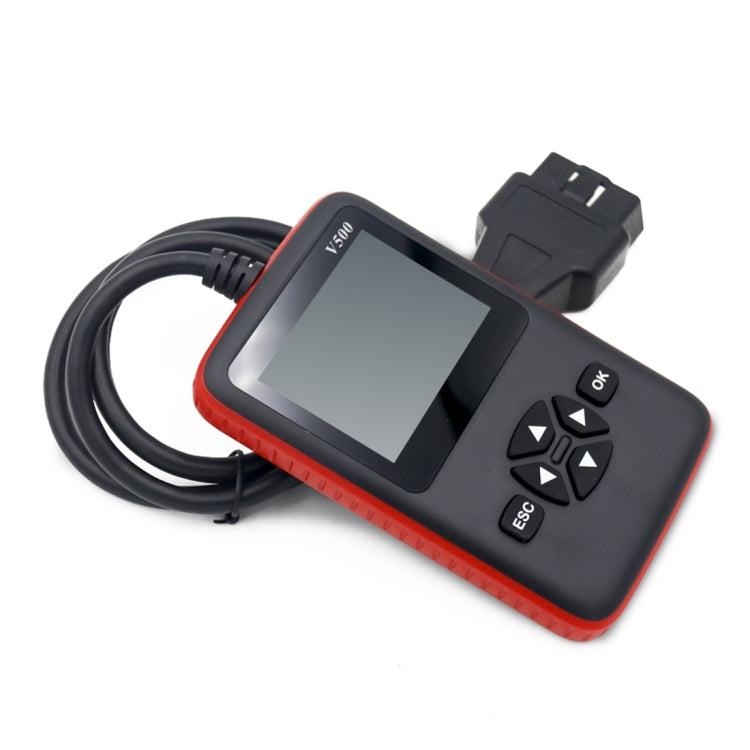

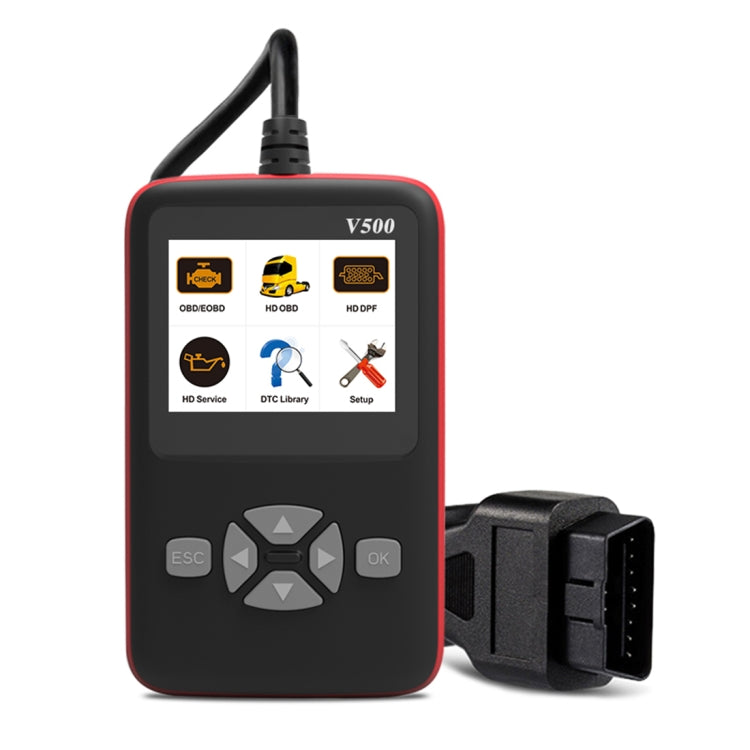

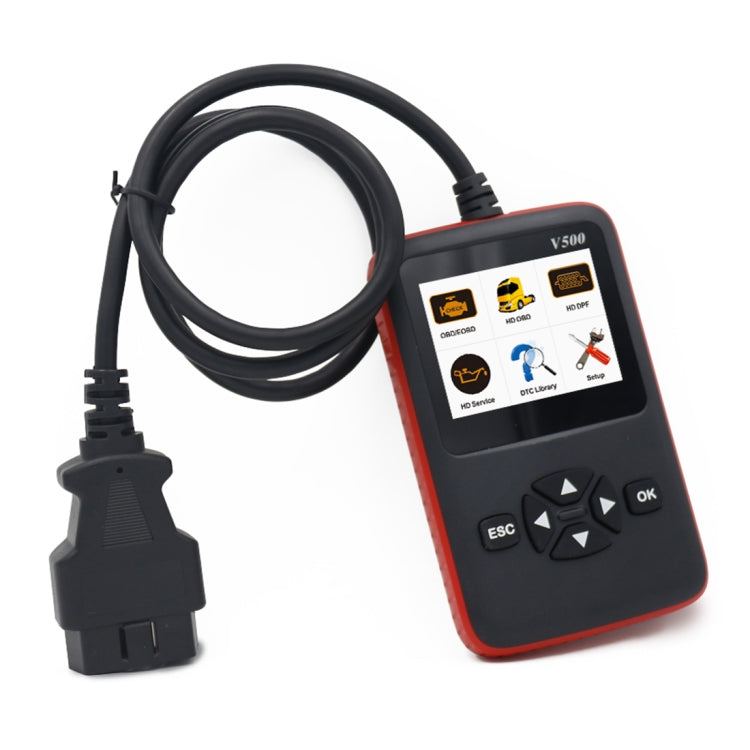

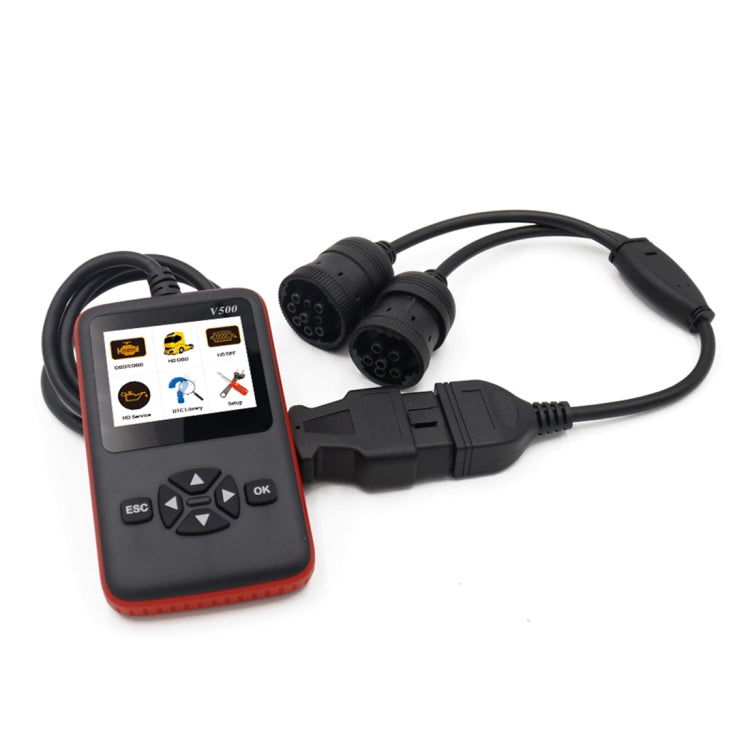

V500 Trunk HD Reading Card Professional OBDII Diagnostic Code Scanner Tool

Name: V500 Trunk HD Reading Card Professional OBDII Diagnostic Code Scanner Tool
Brand: PMC Jewellery
SKU: CMS7740
Price: 2399.00 ZAR
Availability: InStock

R 2,399.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Easy to operate.
2. Easy to install, play and plug.
3. Supported Protocol:
SAE J1850 PWM(41.6 Kbaud)
SAE J1850 VPW(10.4 Kbaud)
ISO 9141-2(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP(fast init,10.4 Kbaud)
ISO 15765-4 CAN(11bit ID,500 Kbaud)
ISO 15765-4 CAN(29bit ID,500 Kbaud)
ISO 15765-4 CAN(11bit ID,2500 Kbaud)
ISO 15765-4 CAN(29bit ID,250 Kbaud)
SAE J 1939
ISO 1708
4. Working voltage: DC 9 ~ 16V
5. Working current: 89mA
6. Operating environment: -20 ~ 65 degrees Celsius
7. Storage temperature: -30 ~ 80 degrees Celsius

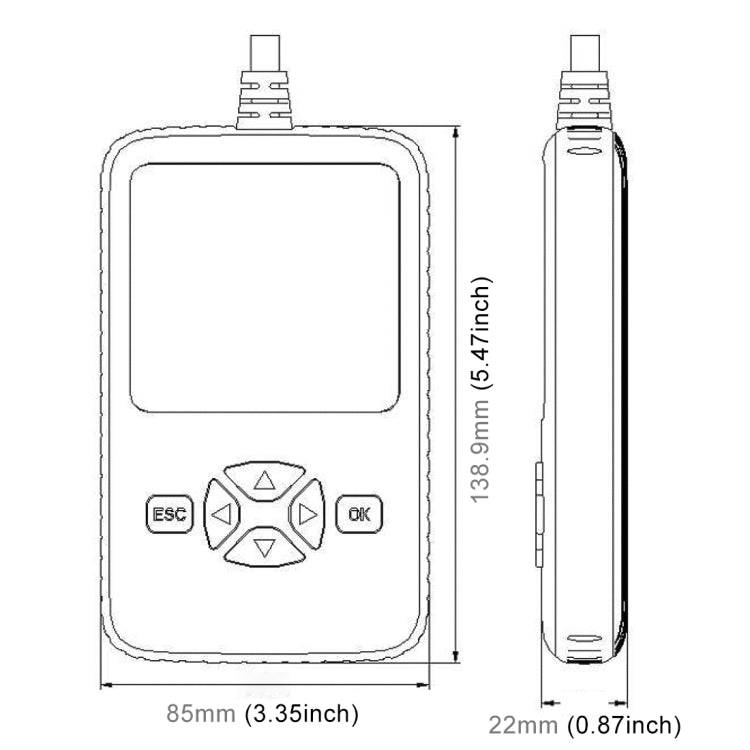

8. Dimensions: 138.9 x 85 x 22mm
