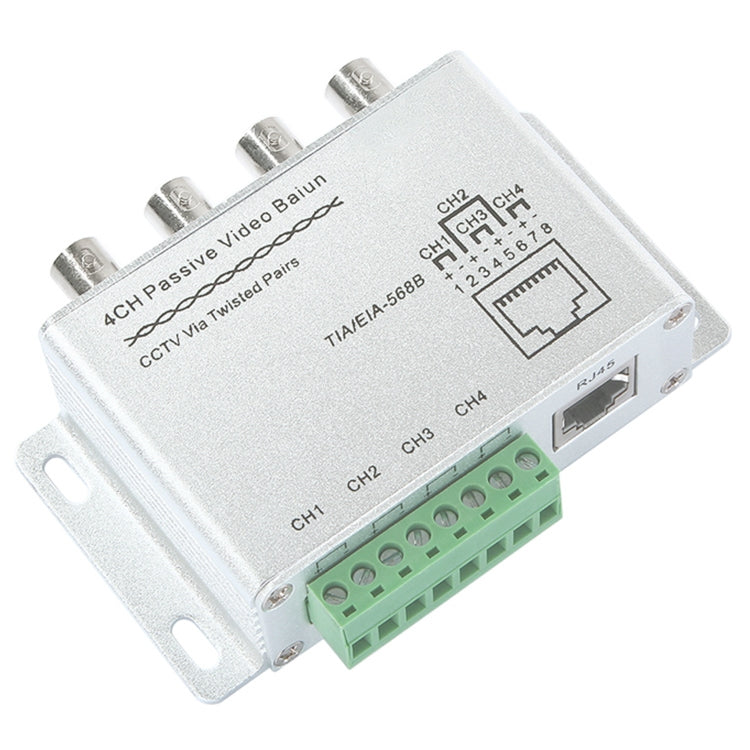

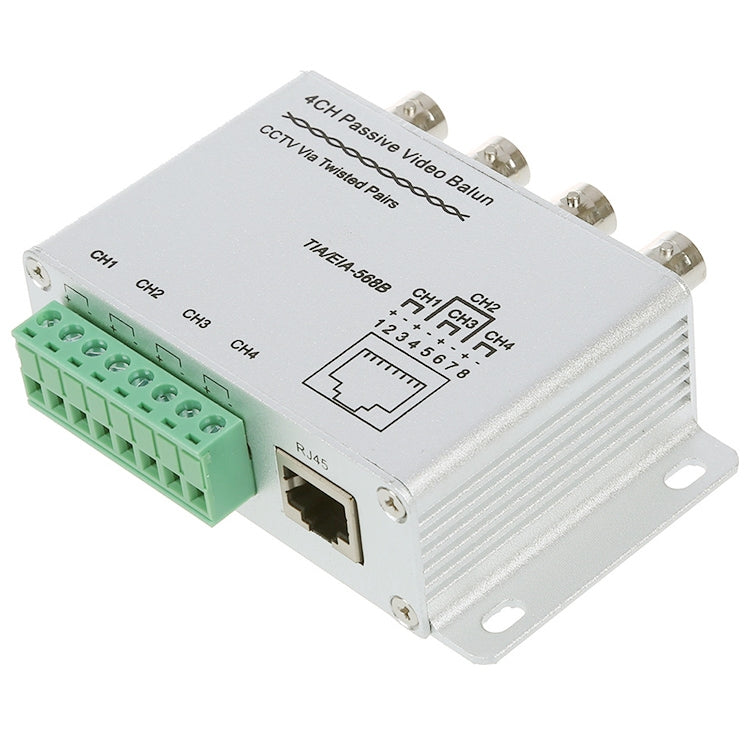

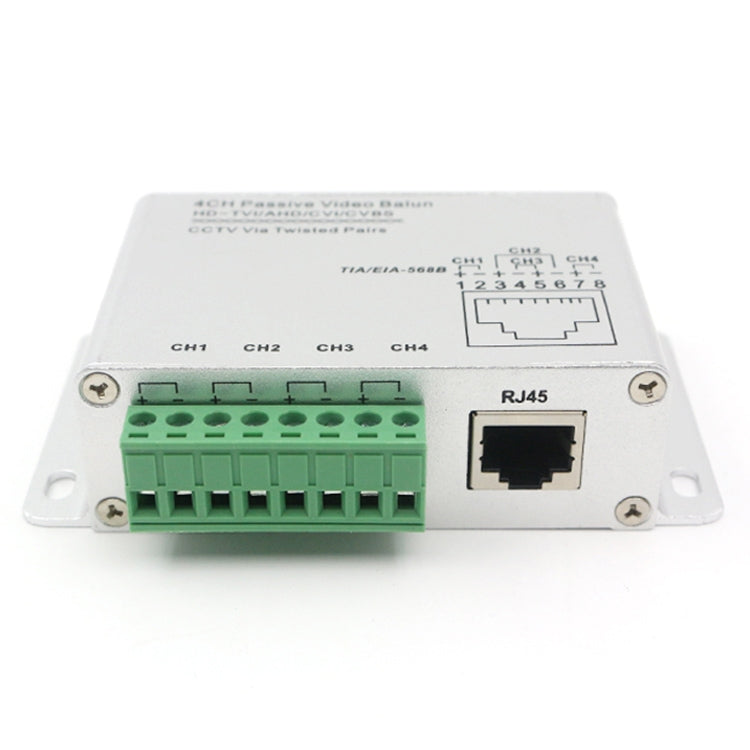

UTP 4 Channel Passive Video Balun Transceiver(Silver)

Name: UTP 4 Channel Passive Video Balun Transceiver(Silver)
Brand: PMC Jewellery
SKU: S-CVB-0145
Price: 479.00 ZAR
Availability: InStock

R 479.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. With working with passive transceiver and active transmitters allow signals transmission up to 330m and 1500m respectively.
2. The unparalleled interference rejection and low emissions of the UTP allow video signals to co-exist in the same wire bundle as telephone, datacom, or low-voltage power circuits.
3. This 4 Channel Video Balun allows the use of a shared or existing cable plant.

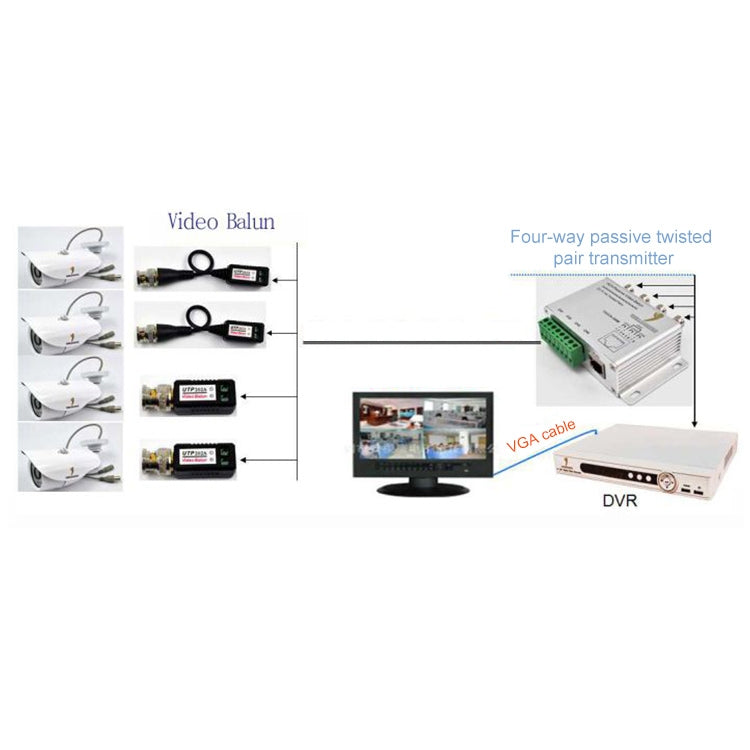

4. Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with good transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire
5. Video Balun Transceiver can simplify the wiring project and save wire use quantity.

Specifications:
1. 4 Channel UTP Balun adopt differential signal transmission with excellent anti-jamming ability
2. Save project wire expenses. each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
3. Full motion CCTV video at distances up to 330m when used with any passive UTP video transceiver
4. Up to 1500m with any active UTP video receiver
5. No power required
6. Built-in transient suppression protection
7. Frequency response: DC - 8MHz
8. CMRR (Common Mode Rejection Ratio): 60DB

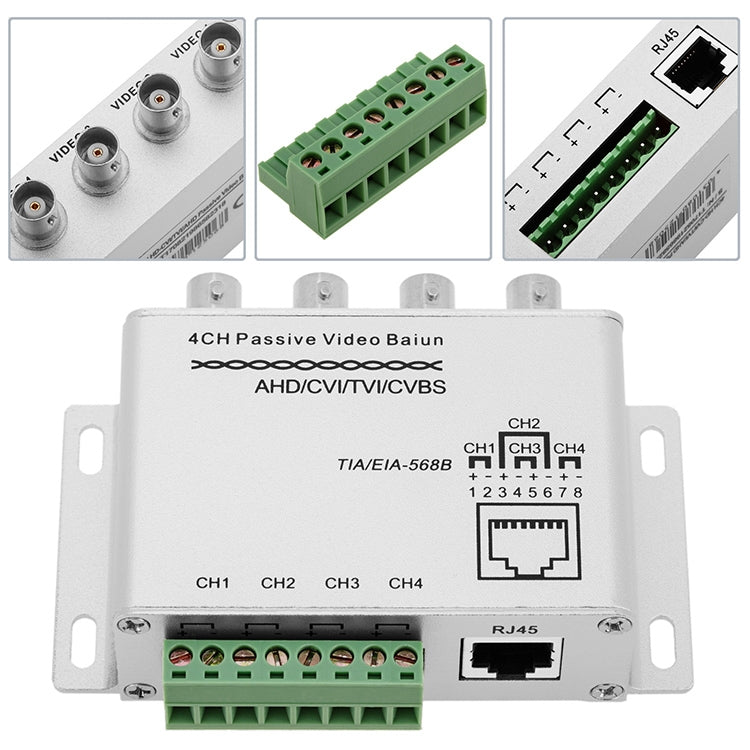

9. Impedance: BNC terminal: 75ohm, Connection terminal: 100ohm
10. Working temperature: -10 degree C - 70 degree C
11. Storage temperature: -30 degree C - 70 degree C
12. Applicable to NTSC, PAL, SECAM and CCIR systems
13. Size: 10.3 x 5.7 x 2.8cm
14. Weight: 184g
