Description

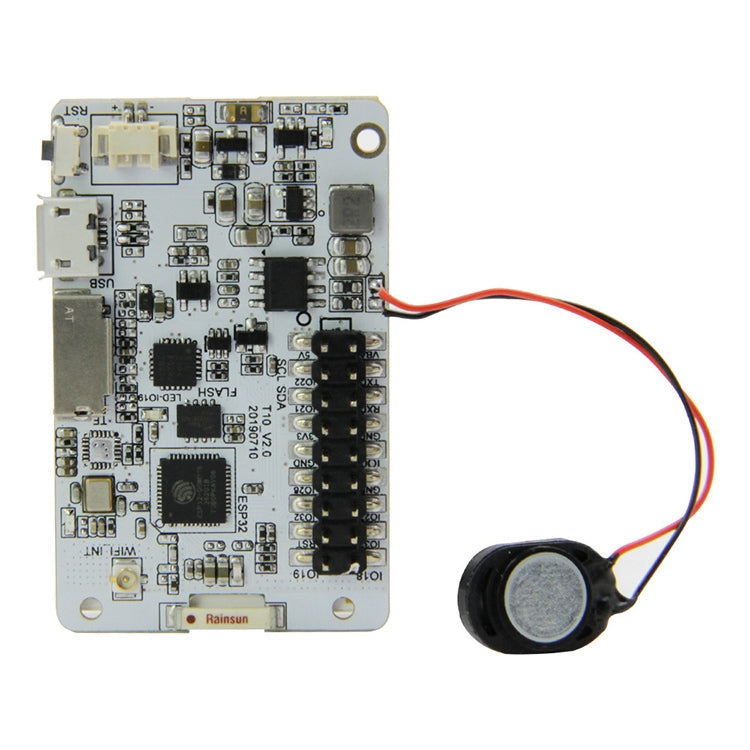

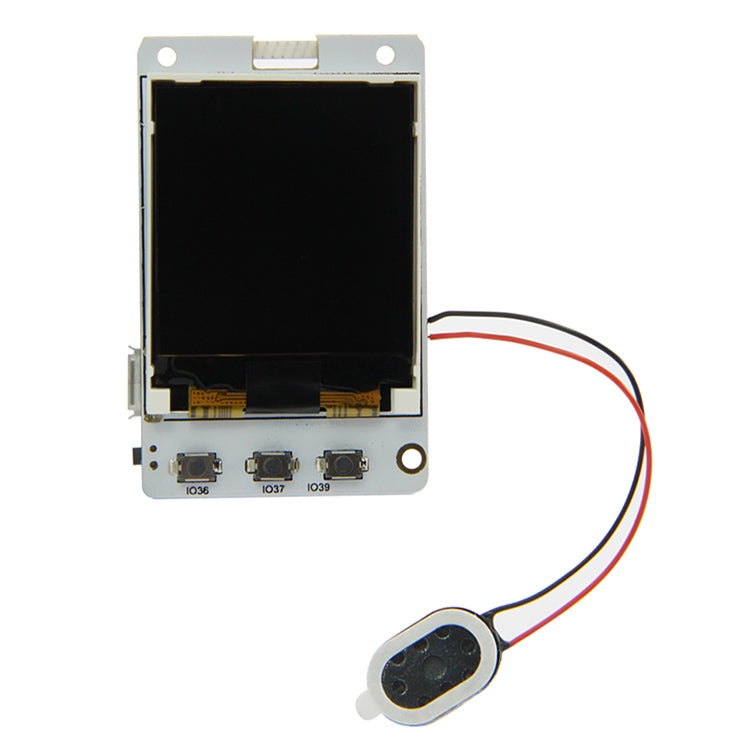

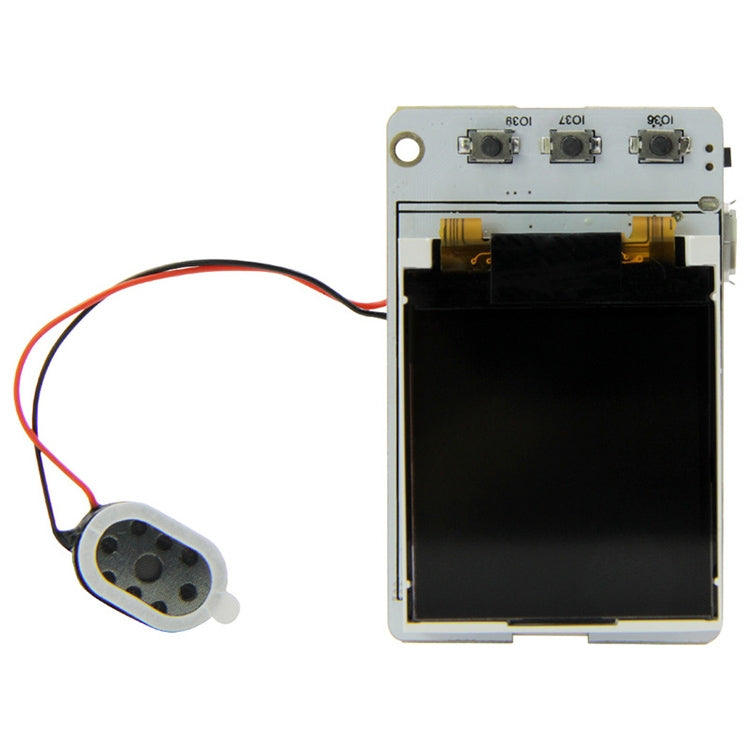

TTGO TS V1.4 ESP32 SD Card MPU9250 WiFi Bluetooth Module is a microcontroller module with integrated WiFi and Bluetooth capabilities. It is suitable for IoT applications, enabling wireless communication and data transfer.
- Chipset: ESPRESSIF-ESP32-PCIO-D4 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessor
- FLASH: QSPI flash/SRAM, up to 4 x 16 MB
- SRAM: 520 kB
- Power indicator lamp: Red
- USB to TTL: CP2104

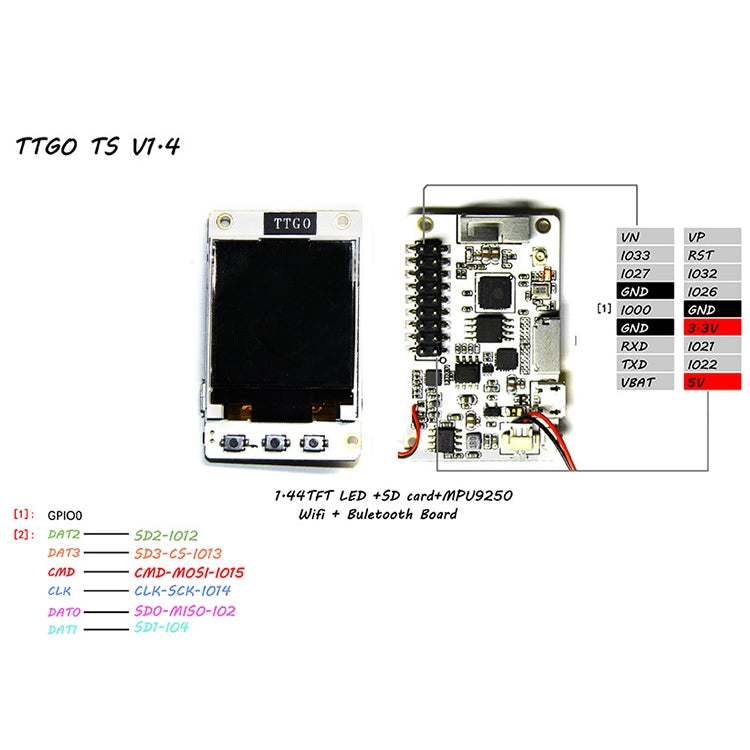

- Modular interface: SD card, UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitor touch sensor, ADC, DACLNA pre-amplifier
- Working voltage: 2.3V-3.6V
- Working current: About 60mA
- Sleep current: 1mA
- Working temperature range: -40°C to +85°C
- Power Supply: USB 5V/1A
- Charging current: 500mA
- Battery: 3.7V lithium battery (not included)
- Wi-Fi Standard: FCC/CE/TELEC/KCC/SRRC/NCC
- Wi-Fi Protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150Mbps)
- Wi-Fi Frequency range: 2.4GHz to 2.5GHz (2400M to 2483.5M)
- Wi-Fi Transmit Power: 22dBm
- Wi-Fi Communication distance: 300m
- Bluetooth Protocol: Bluetooth v4.2 BR/EDR and BLE standard
- Bluetooth Radio frequency: -98dBm sensitivity NZIF receiver Class-1, Class-2 & Class-3 emitter AFH
- Bluetooth Audio frequency: CVSD & SBC audio frequency
- Wi-Fi Modes: Station/SoftAP/SoftAP+Station/P2P
- Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption Type: AES/RSA/ECC/SHA
- Firmware upgrade: UART download/OTA through network/host
- Software Development: Support cloud server development / SDK for user firmware development
- Networking protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
- User Configuration: AT + Instruction set, cloud server, android/iOS app
- Operating System: FreeRTOS
- Package list: TTGO TS ESP32 Module x 1, Power cable x 1
