Description

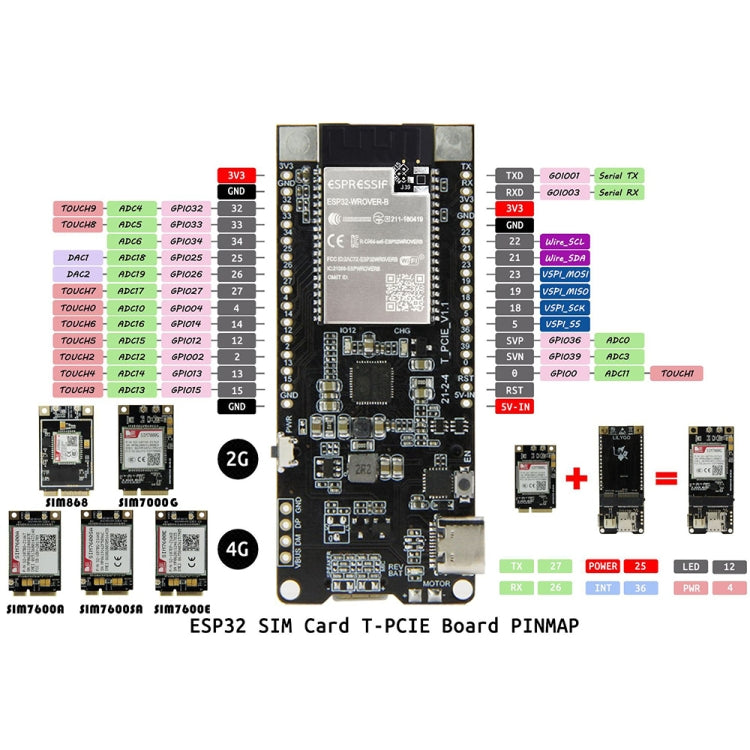

TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WiFi Bluetooth Nano Card SIM Series Module is a hardware development board designed for IoT applications. It enables communication over WiFi and Bluetooth, making it suitable for projects requiring wireless connectivity.
- Chipset: ESP32-WROVER-B
- Power management chip: AXP192
- Flash memory: 4MB / 16MB
- Static SRAM: 8MB
- SRAM: 520 kB
- Buttons: PWR power switch, reset
- USB to TTL: CP2104
- Vehicle clock: 40MHz crystal oscillator

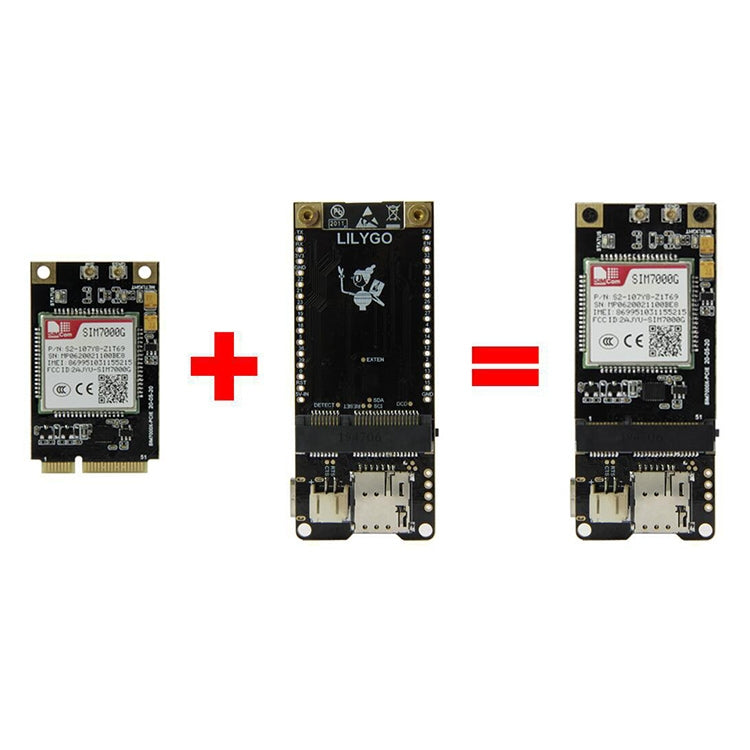

- Peripheral equipment: SIM Nano card slot, Mini PCIE card slot
- Antenna: Onboard antenna (default)
- Working voltage: 2.7V to 3.6V
- Sleep current: Approximately 700mA
- Operating temperature range: -40°C to +85°C
- Dimensions: 75 x 33 x 10.5 mm
- Weight: 14.5g
- Power input: USB 5V / 1A
- Charging current: 500 mA
- Battery input: 3.7V to 4.2V
- Charging IC: AXP192
- JST connector: 2-pin 2.0mm
- USB: Type C
- Wi-Fi standard: FCC / CE-RED / IC / TELEC / KCC / SRRC
- Wi-Fi protocol: 802.11 b/g/n (up to 150Mbps)
- Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
- Transmit power: 22dBm
- Communication distance: 300m
- Bluetooth protocol: Bluetooth v4.2BR/EDR and BLE
- Bluetooth radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm
- Audio: CVSD&SBC audio
- Wi-Fi modes: Workstation / SoftAP / SoftAP + Station / P2P
- Security mechanisms: WPA / WPA2 / WPA2-Enterprise / WPS
- Encryption methods: AES / RSA / ECC / SHA
- Firmware upgrade: UART download/OTA
- Software development: support cloud server development / SDK for user firmware development
- Network protocols: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
- User configuration: AT + command set, cloud server, Android / iOS app
- Operating system: FreeRTOS

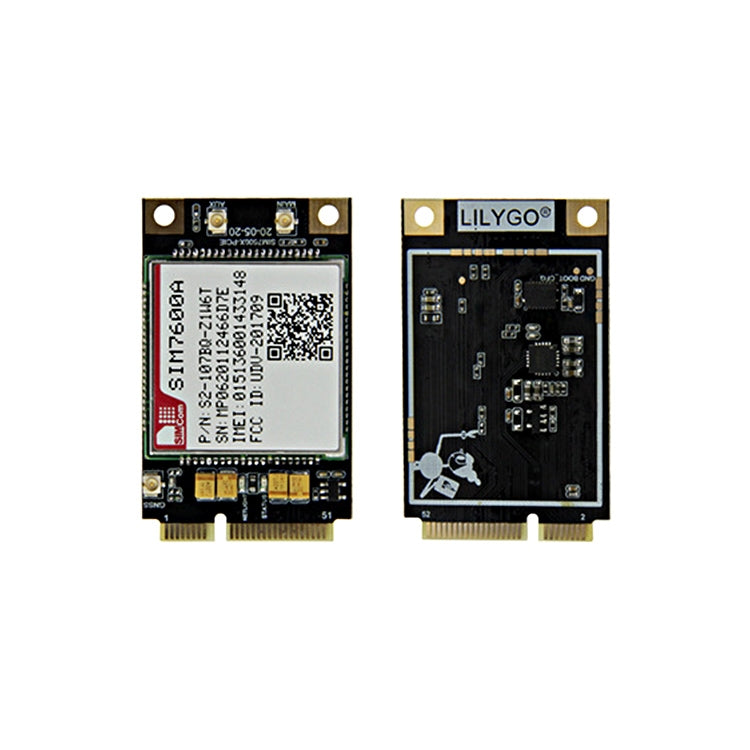

- SIM7600A LTE-FDD: B2/B4
- SIM7600A UMTS/HSPA+: B2/B5

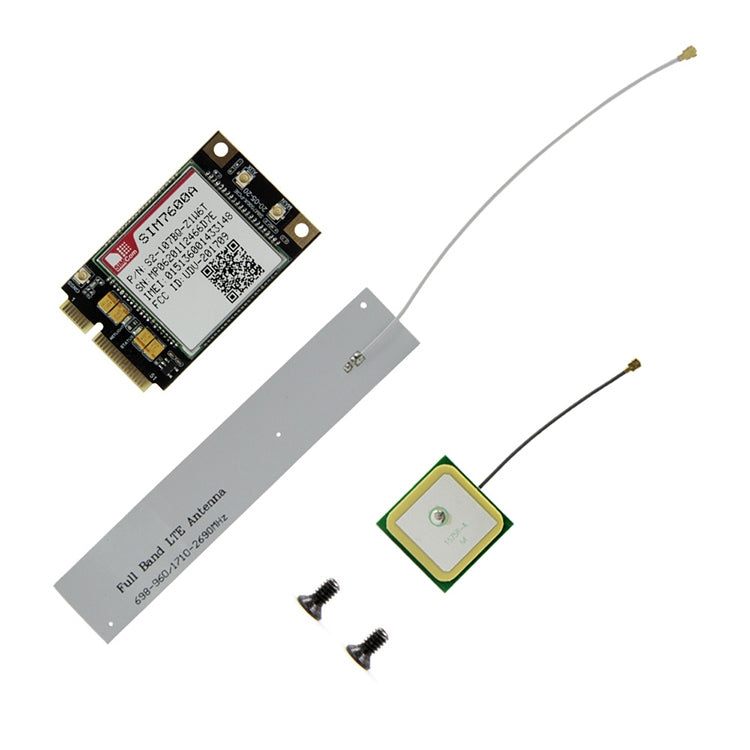

- Packing list: SIM7600A-PCIE module x 1, LTE antenna x 1, GPS antenna x 1, screw x 2
