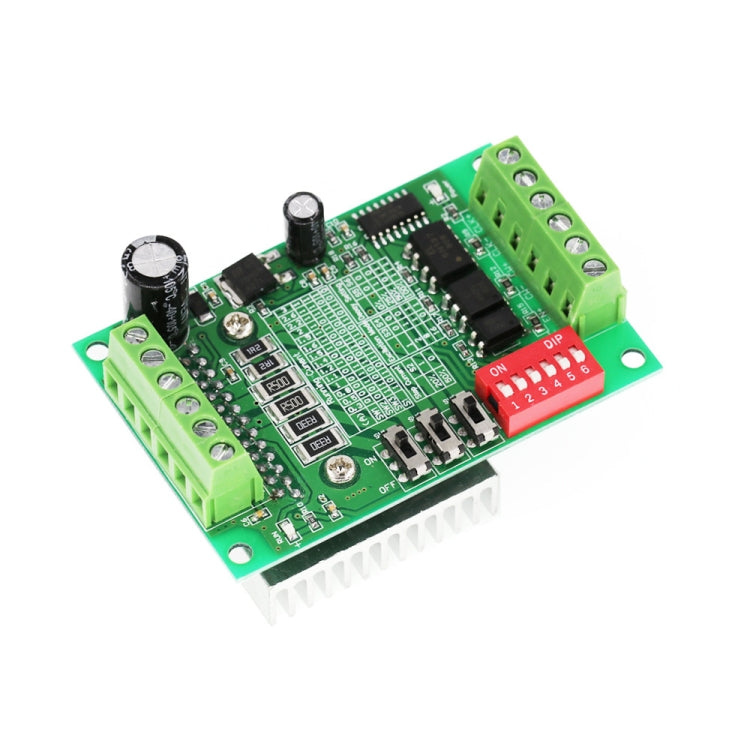

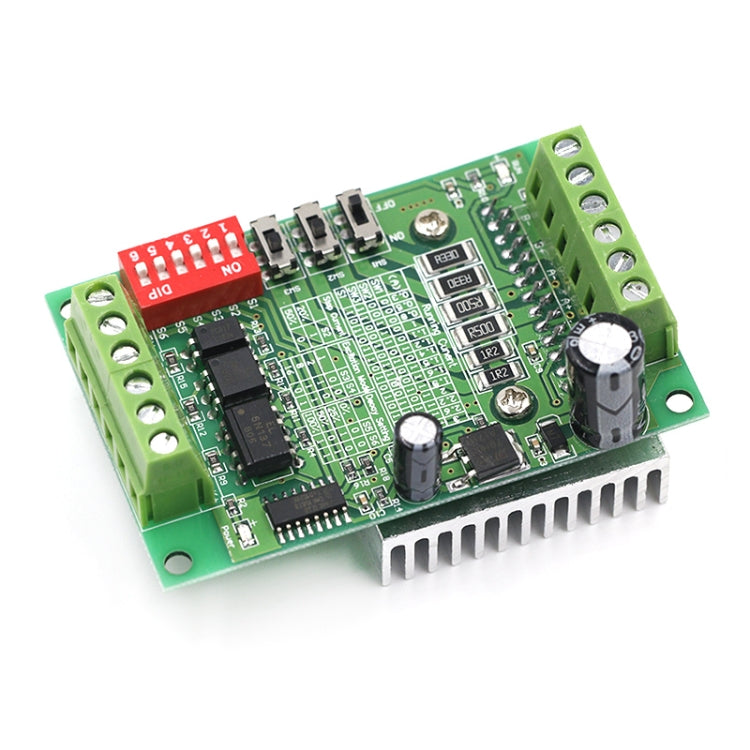

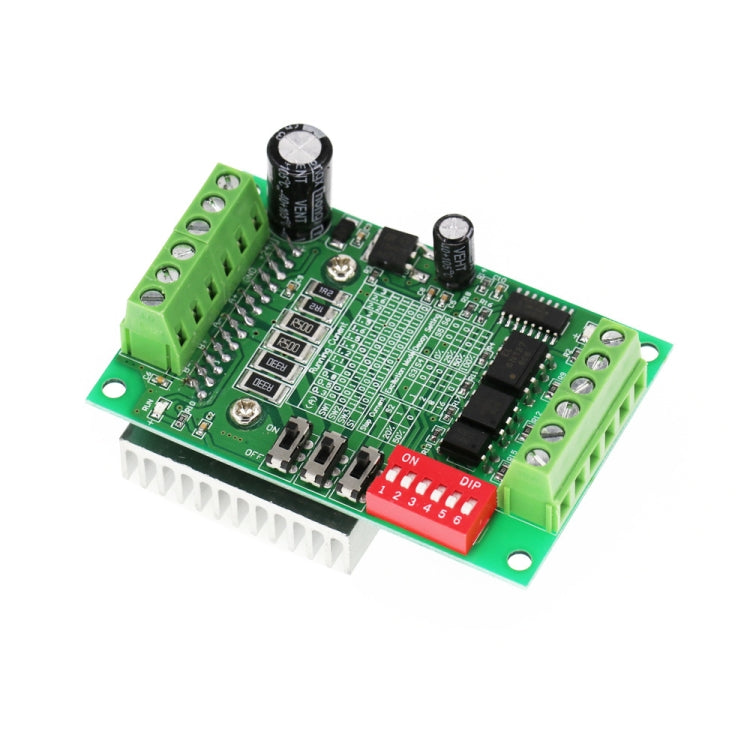

TB6560 3A 10V-35V Stepper Motor Driver Controller Board(Green)
TB6560 3A 10V-35V Stepper Motor Driver Controller Board(Green)
Sale
Sold out
Pre-order
Regular price
R 339.00
Regular price
Sale price
R 339.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description
The TB6560 3A 10V-35V Stepper Motor Driver Controller Board is designed to control stepper motors with a voltage range of DC 10V-35V. It is suitable for applications requiring precise motor control, such as CNC machines and 3D printers.
- Working voltage: DC 10V-35V
- Recommended power supply: DC 24V switching power supply
- Chip: Toshiba TB6560AHQ
- Output current: +/-3A (max vertex value of 3.5A)
- Compatible with two-phase, four-phase, four-wire, and six-wire stepper motors
- Suitable for stepper motors rated up to 3A
- Automatic half-flow function
- Subdivision options: Full step, half step, 1/8 step, 1/16 step (maximum 16 subdivisions)
- Dimensions: 50mm (W) x 75mm (L) x 35mm (H)
- Weight: 83g
- High-speed optical coupling: 6N137
- Protection circuits: Low-voltage shutdown, overheating shutdown, overcurrent protection
- Board printing instructions for easy operation

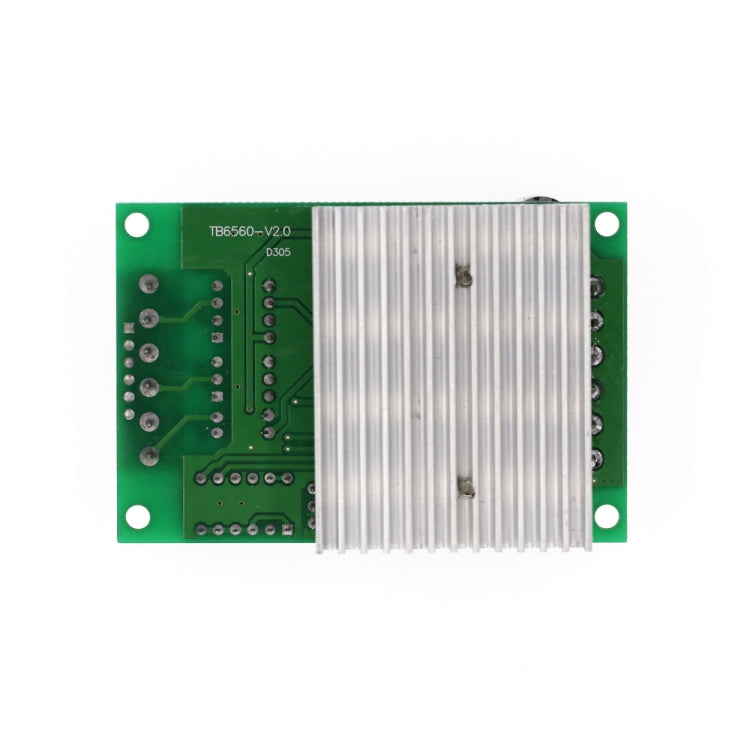

- Thick radiator for heat dissipation
