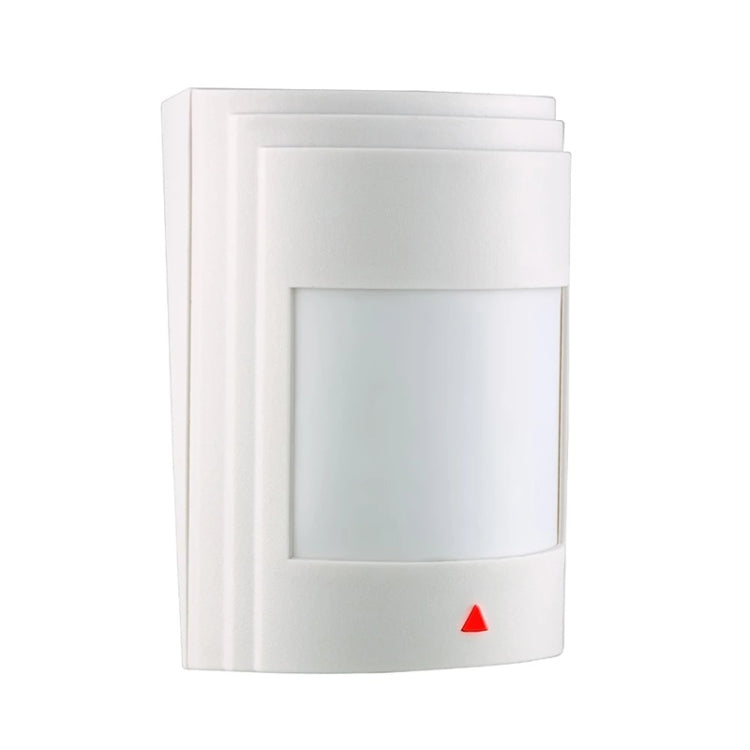

PA-476 Wired Passive Infrared Wide Angle PIR Motion Sensor Infrared Detector Alarm(White)

Name: PA-476 Wired Passive Infrared Wide Angle PIR Motion Sensor Infrared Detector Alarm(White)
Brand: PMC Jewellery
SKU: S-MDC-0367
Price: 299.00 ZAR
Availability: InStock

R 299.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Auto pulse signal processing, 2 levels adjustable
2. Auto temperature compensation
3. 2nd generation Fresnel lens
4. Optional other lenses

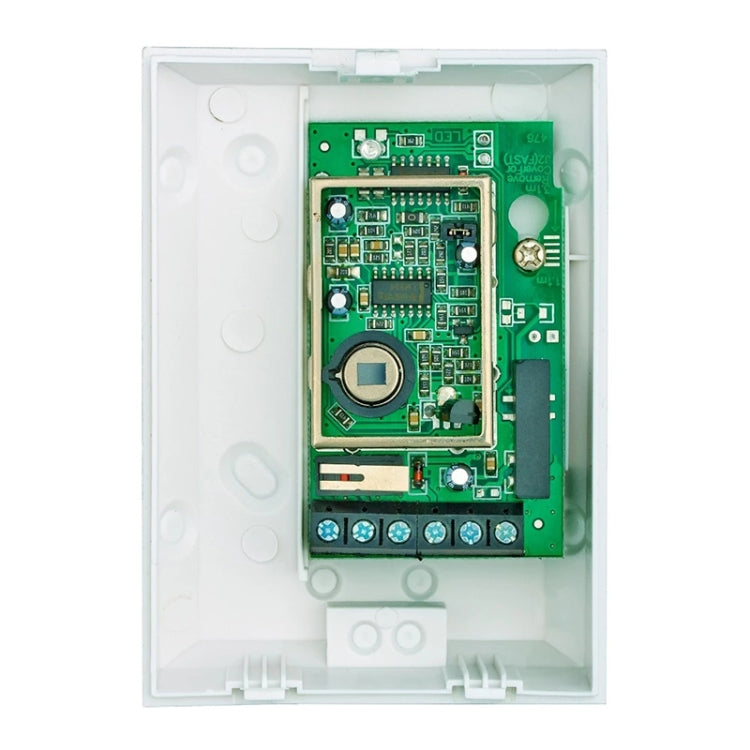

5. High density SMD design
6. Additional Connector for EOL resistor
7. Fire resistant case
8. Sensor: Low noise, high sensitivity, dual element, PIR Sensor
9. Pulse Count (Sensitivity): Two levels auto pulse signal processing, 1~3 pulses or 2~6 pulse selectable
10. Temperature Compensation: Auto
11. Startup Time: 60 seconds after power up
12. Detection Speed: 0.2~7m/sec
13. Lens: Second generation Fresnel lens
14. White Light Immunity: Yes
15. Coverage: 12m x 110 degree
16. Zones: 9+5+5+3=22
17. Installation Height: 1.1~3.1m adjustable
18. Alarm Indication: Green LED constant light 3 seconds (can be disabled)
19. Alarm Output: N.C., rating DC 28V, 0.15A
20. Anti-Tamper Switch: N.C., opens when cover removed, rating 0.15A, 28Vdc
21. Power Input: DC 9~16V, 18mA
22. Operating Temperature: -10C~50C
23. Operating Humidity: 95%
24. Size: 90 x 65 x 50mm / 3.5 x 2.6 x 2.0in (L x W x H)

Package Included:
1 x Wireless PIR IR Motion Sensor for Alarm Home Security System
