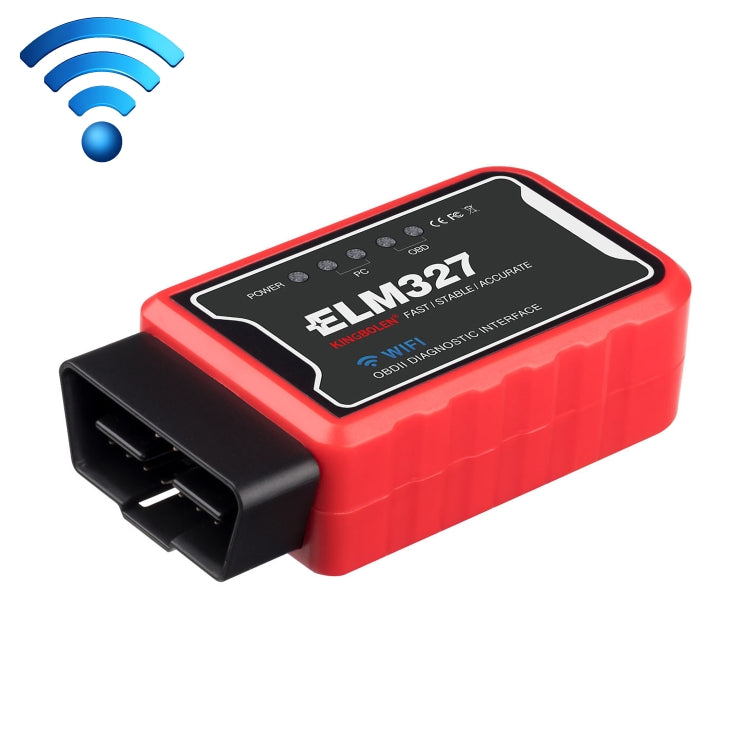

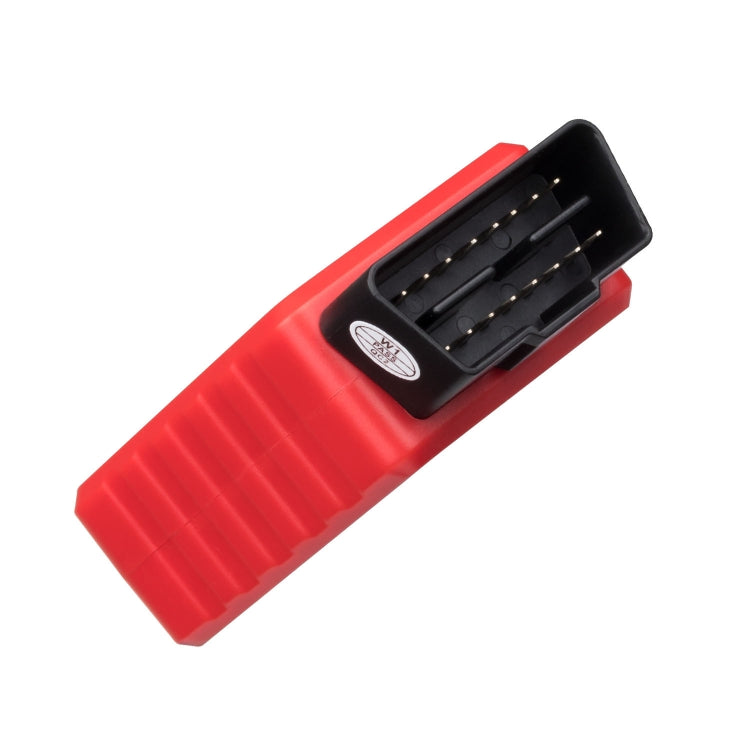

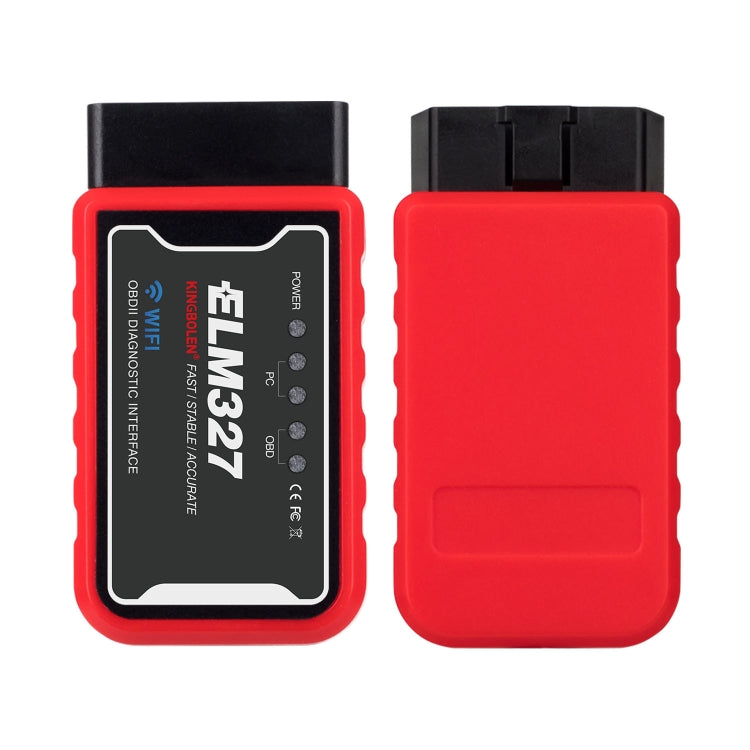

OBD II ELM327 WiFi Car Fault Diagnostic Tool PIC25K80 Chip

Name: OBD II ELM327 WiFi Car Fault Diagnostic Tool PIC25K80 Chip
Brand: PMC Jewellery
SKU: CRP5488
Price: 319.00 ZAR
Availability: InStock

R 319.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Function
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble codes and turn off the MIL (Check Engine light)
3. Display current sensor data, including: Engine RPM / Calculated Load Value / Coolant Temperature / Fuel System Status / Vehicle Speed
4. Short Term Fuel Trim
5. Long Term Fuel Trim
6. Intake Manifold Pressure
7. Timing Advance
8. Intake Air Temperature
9. Air Flow Rate
10. Absolute Throttle Position
11. Oxygen sensor voltages / associated short term fuel trims
12. Fuel System status
13. Fuel Pressure

Specification
1. SSID: WiFi_OBDII
2. IP: 192.168.0.10
3. Port: 35000
4. Communication: WIFI

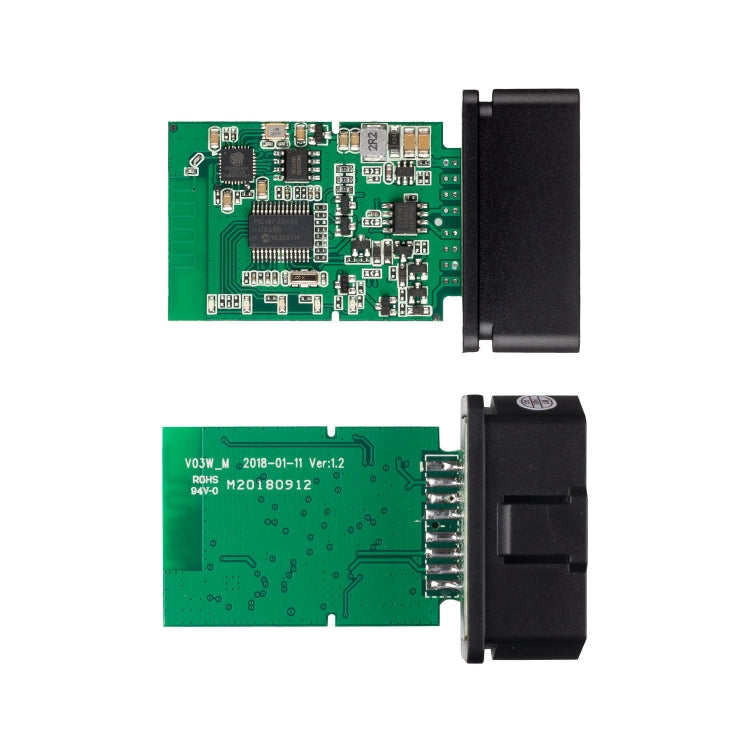

5. Chip: PIC25K80
6. Support System: IOS, Android, Symbian, Windows
7. Working Voltage: 9v ~ 16v
8. Working Current: 65mA
9. Standby Current: 45mA
10. Operating temperature: -40 ~ 85 Celsius degree
11. Working Humidity: less than 60%
12. Size: 45mm x 25mm x 75mm
13. Compatible systems: Software support platform: Windows XP, Windows 7/8, IOS, Android, Symbian.
14. Compatible software:
Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
IOS: Auto Doctor, Mini OBDII
Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian: OBDScope

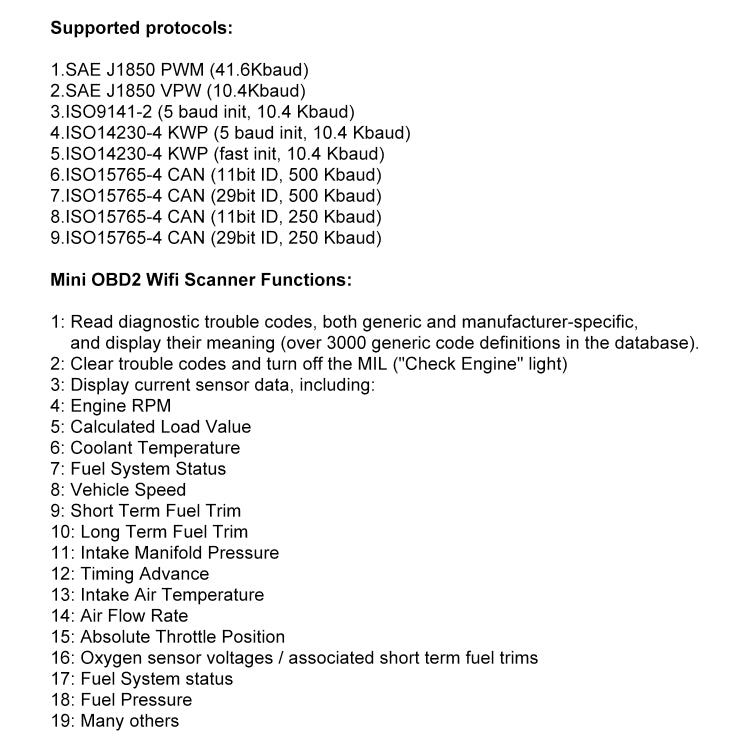

Supported Protocol
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4 Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
