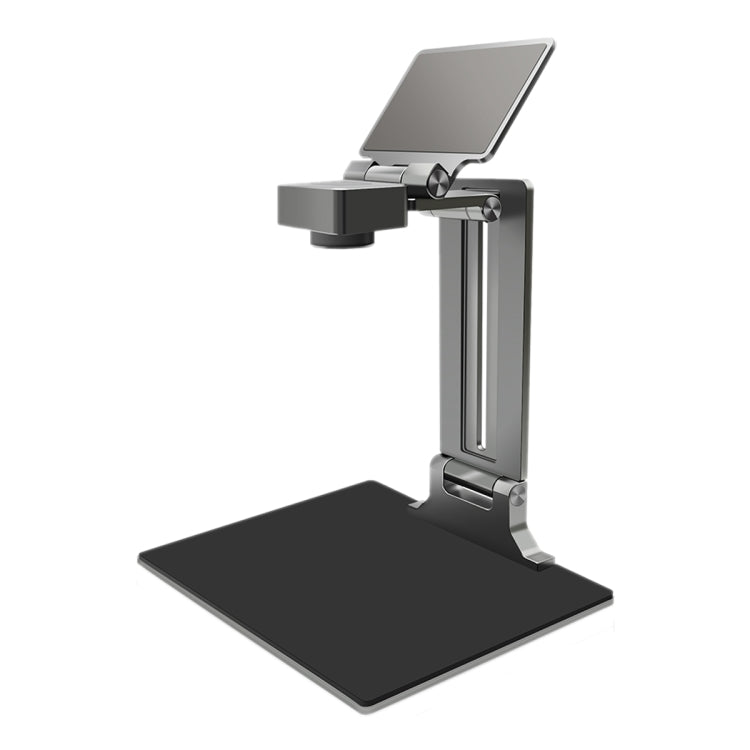

Infrared Thermal Imaging Analyzer Motherboard Chips Quick Diagnostic Device

Name: Infrared Thermal Imaging Analyzer Motherboard Chips Quick Diagnostic Device
Brand: PMC Jewellery
SKU: EDA0066925
Price: 6509.00 ZAR
Availability: InStock

R 6,509.00

Sale Sold out

FREE DELIVERY on all orders.

Quantity

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

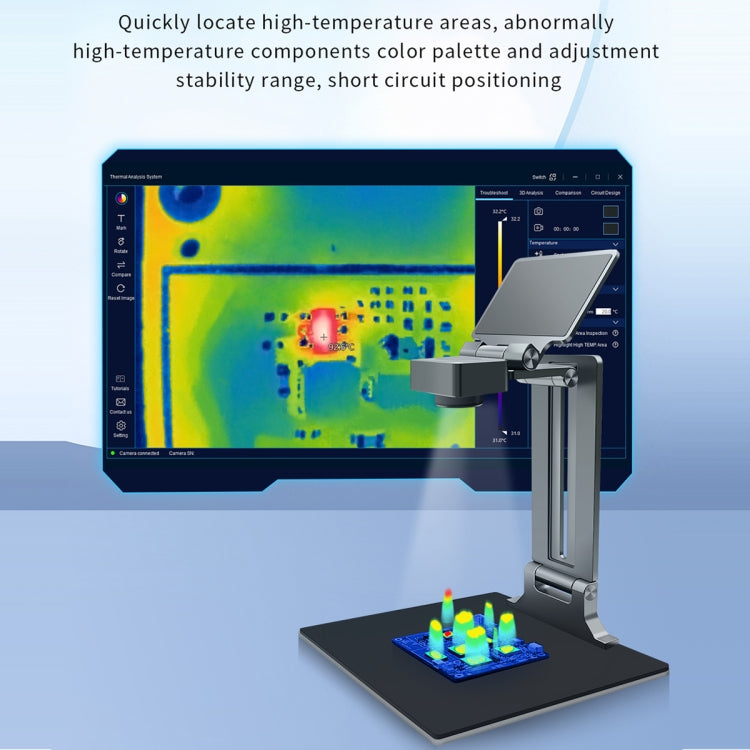

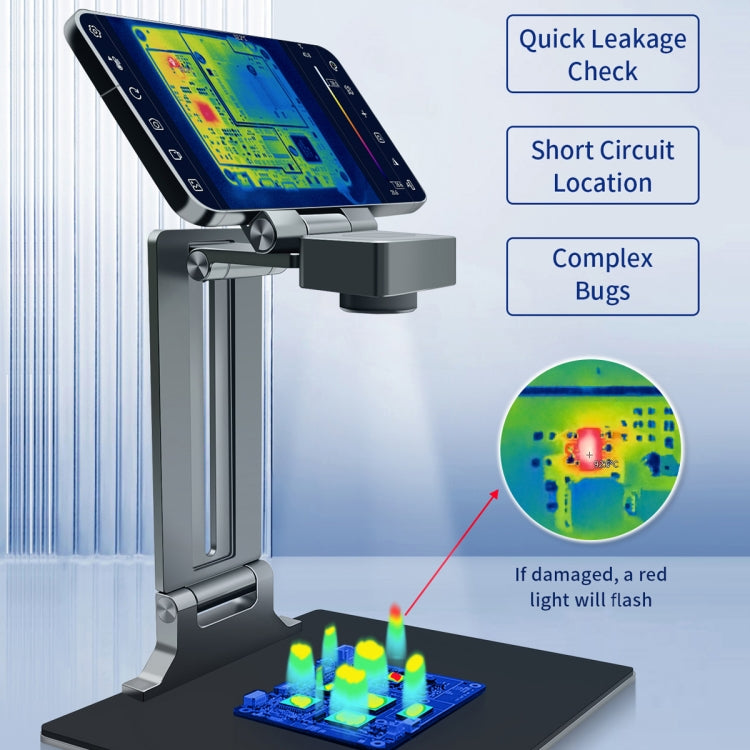

1. Quickly locate high-temperature areas, abnormally high-temperature components color palette and adjustment stability range, short circuit positioning

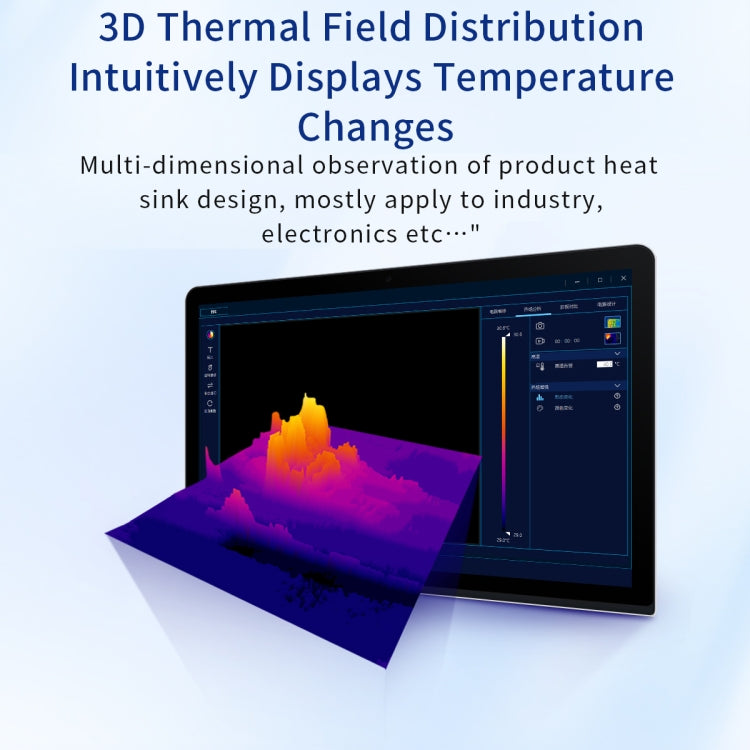

2. 3D Thermal Field Distribution Intuitively Displays Temperature Changes

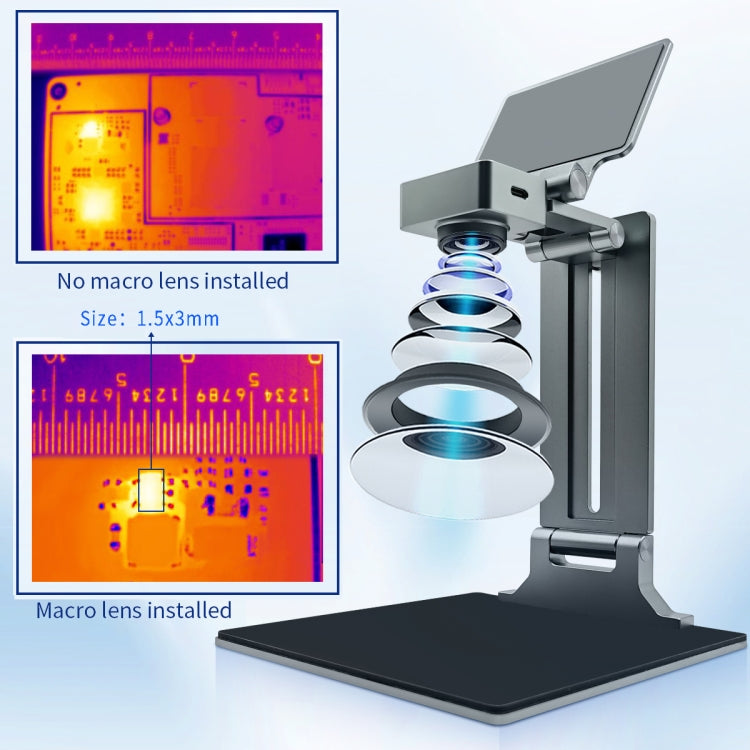

3. Optional High-definition 30mm Macro Lens, which supports enlarging local details of objects, easily detects abnormal areas on the circuit board, and, quickly troubleshooting problems

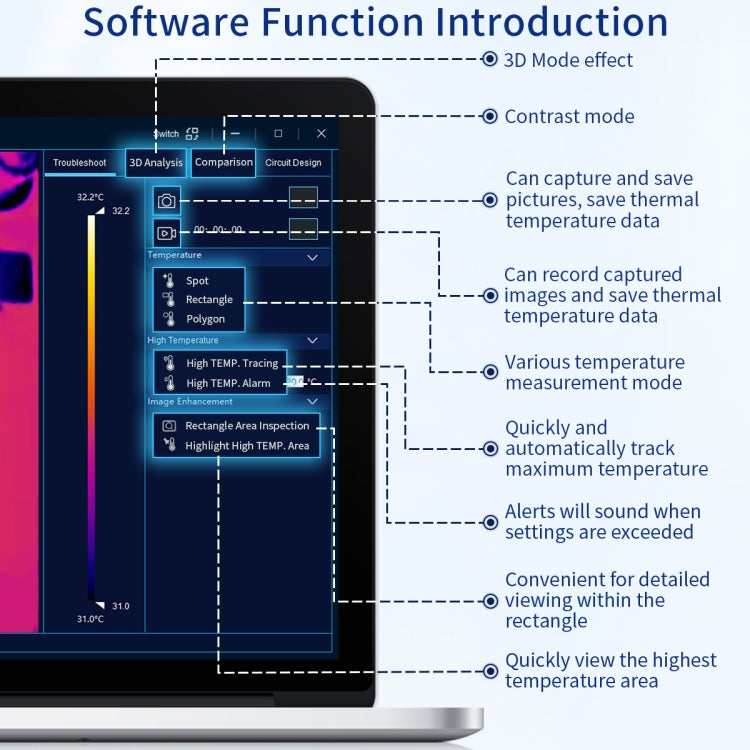

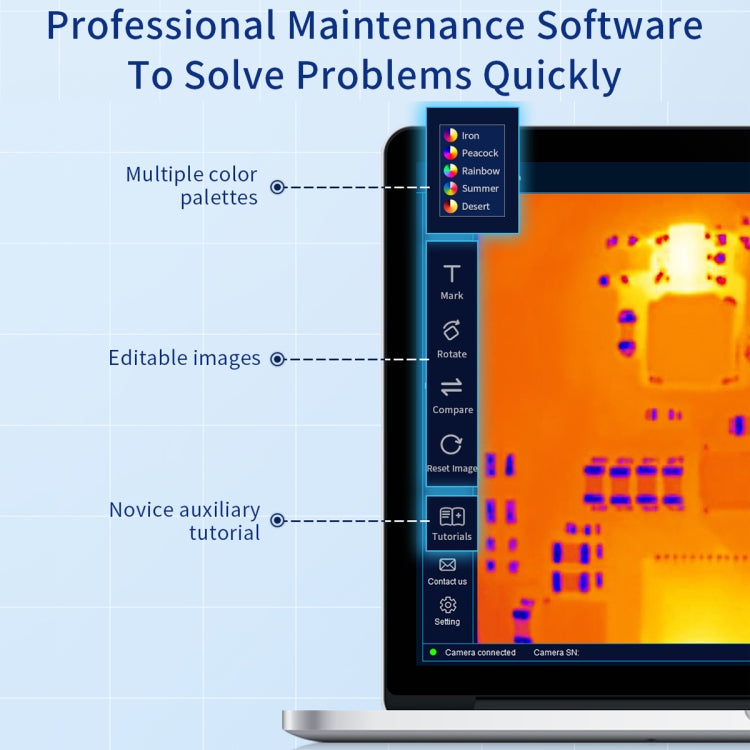

4. Professional Maintenance SoftwareTo Solve Problems Quickly

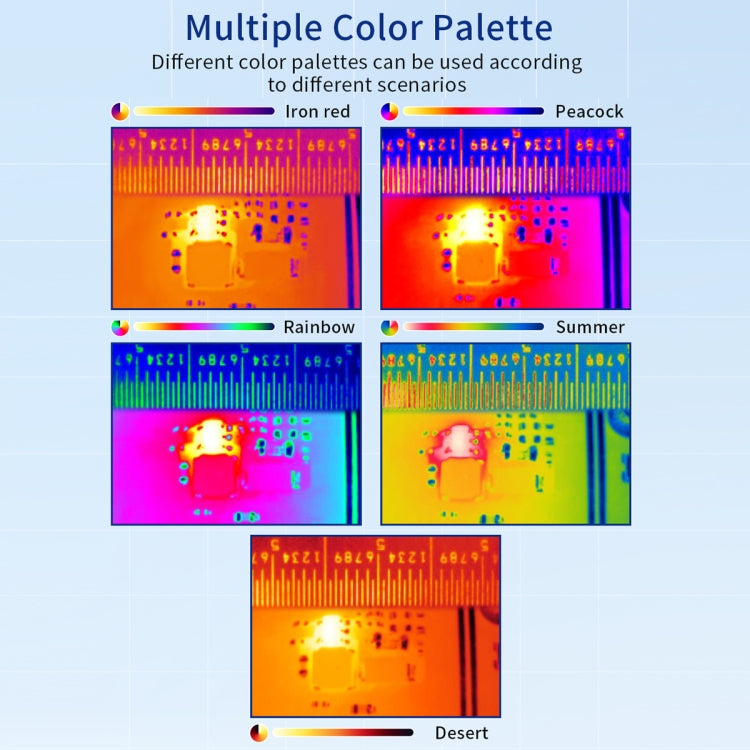

5. Multiple Color Palette, Different color palettes can be used according to different scenarios

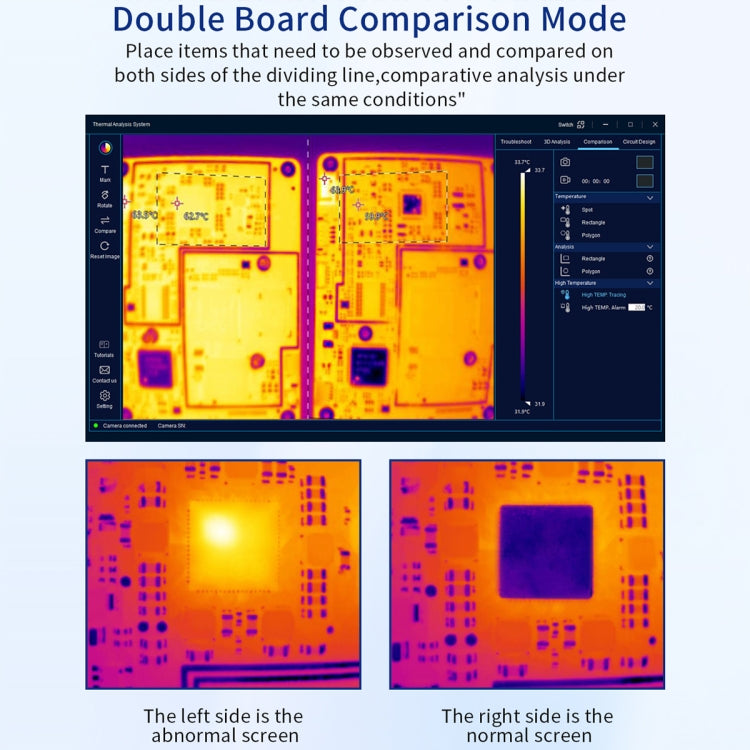

6. Double Board Comparison Mode, Place items that need to be observed and compared on both sides of the dividing line, comparative analysis under the same conditions

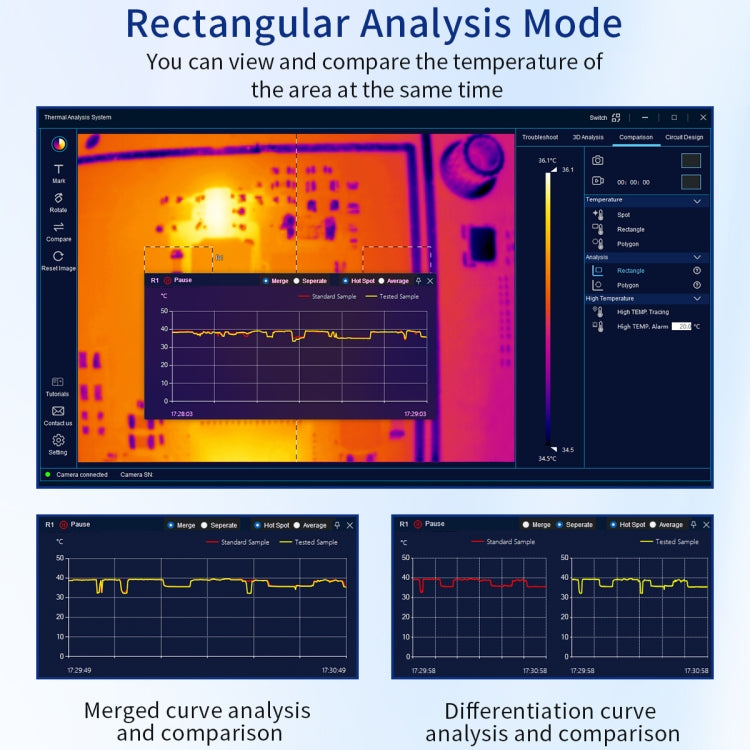

7. Rectangular Analysis Mode, You can view and compare the temperature of the area at the same time
8. Temperature Measurement Range:
The lowest temperature -15 degrees Celsius
The highest temperature 600 degrees Celsius
9. High-Temperature abnormality alarm, when the temperature alarm switch is turned on and the set temperature threshold is exceeded, The buzzer will sound an alarm and the picture frame will have a red border flashing
10. PC Application one-click startup, open the software, connect the thermal camera to the computer via USB cable, then press the power button on the top, and the infrared effect will appear on software interface, support win10 or above and Android terminals

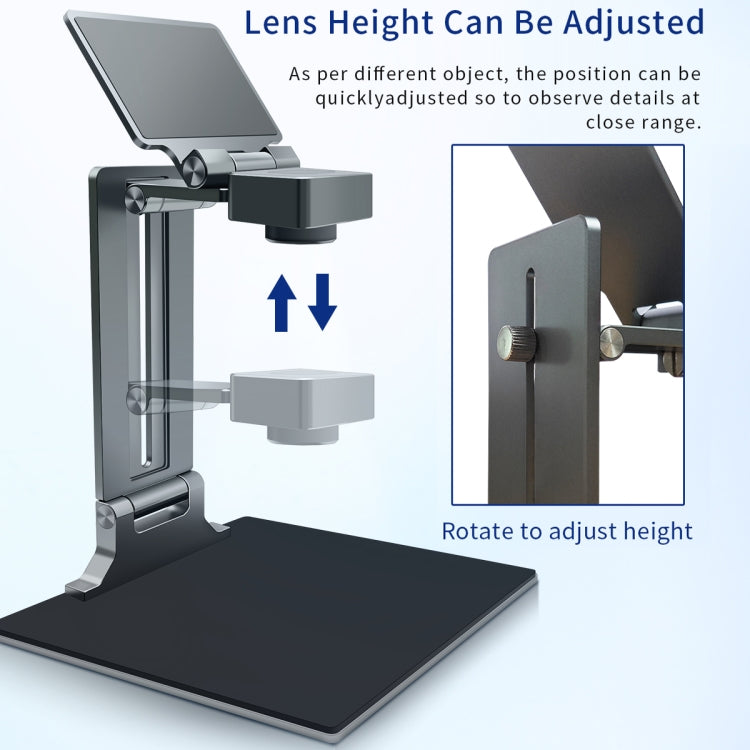

11. Lens height can be adjusted, as per different objects, and the position can be quickly adjusted so as to observe details at close range
12. Infrared resolution: 256 x 192
13. Refresh rate: 25Hz
14. FOV: 56 degrees x 42 degrees
15. Measurement distance: 3mm-15mm
16. Interface: USB Type-C
17. Input voltage: DC 5V

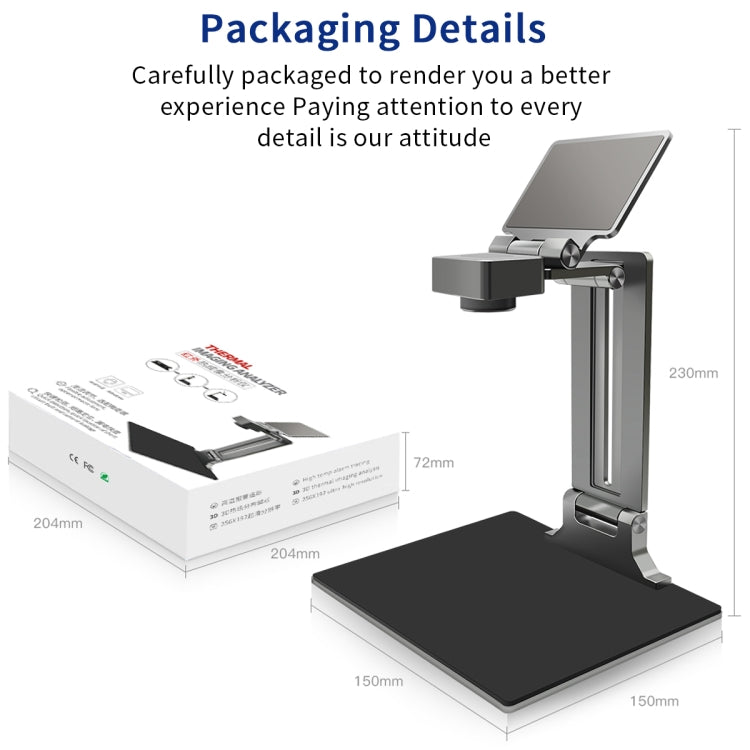

18. Product size: 15x 15 x 23cm
