HDMI Single Cable 120m Transmitter / Receiver Extender 4K HD Transmitter US Plug(Gray)

Name: HDMI Single Cable 120m Transmitter / Receiver Extender 4K HD Transmitter US Plug(Gray)
Brand: PMC Jewellery
SKU: TBD0605229901A
Price: 1259.00 ZAR
Availability: InStock

R 1,259.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Extended distance: up to 120 meters
2. Input video signal: 5Volts p-p (TTL)
3. Video resolution support: up to 3840x2160/30Hz
4. Support audio format: DTS/Dolby/LPCM
5. Support video format: 4K/1080P/720P, etc.
6. Maximum wideband transmission: 340MHz
7. Maximum transmission rate: 3x3.4Gbps
8. Input/output cable length: within 15M AWG26 HDMI standard cable
9. Maximum operating current: TX: 350mA; RX: 200mA
10. Power adapter specifications: input: AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
11. Operating temperature range: -10 - 45 degrees Celsius

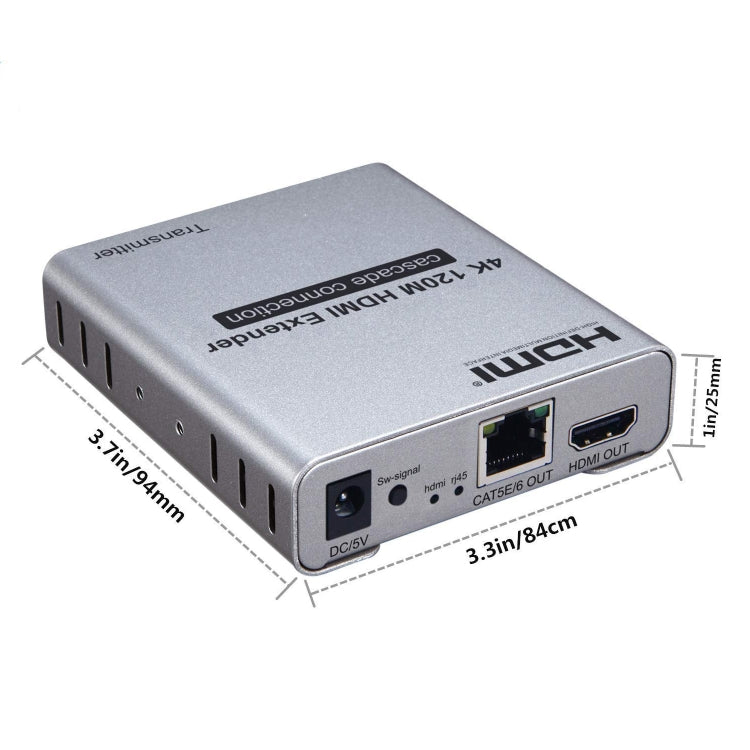

12. Size: about 9.4 x 8.4 x 2.4cm
13. Weight: about 223g

Features:
1. HDMI and network port two-way HD signal input, you can switch the signal according to the use of the scene
2. HDMI OUT port HD signal output, connect to the monitor, CAT5E/6 OUT port connect to the network cable, long-distance transmission of HD signals
3. Anti-static technology, better protection of the product (test data reference: can prevent external 8KV voltage)
4. Wide power supply design, can use 5-12V voltage power supply, more convenient (factory default DC/5V power supply)
5. Using series cascade transmission, convenient wiring, no need to connect the fiber optic switch, direct series cascade, convenient, simple, direct
6. Three heat dissipation surfaces, multiple heat sinks, prevent heat generation, low power operation, high safety performance
7. High-performance technology chip, no computer control, convenient and quick, plug and play
8. 4K HD signal transmission, the use of HD transmission technology, support for 3840x2160 resolution, presenting a higher color space, so that more pictures come to life
9. Isolation transformer, enhance the signal, so that the transmission distance is farther, more stable, the chip end and the external isolation, anti-interference ability to enhance the chip to add a great deal of protection (such as surge)

Packing list:

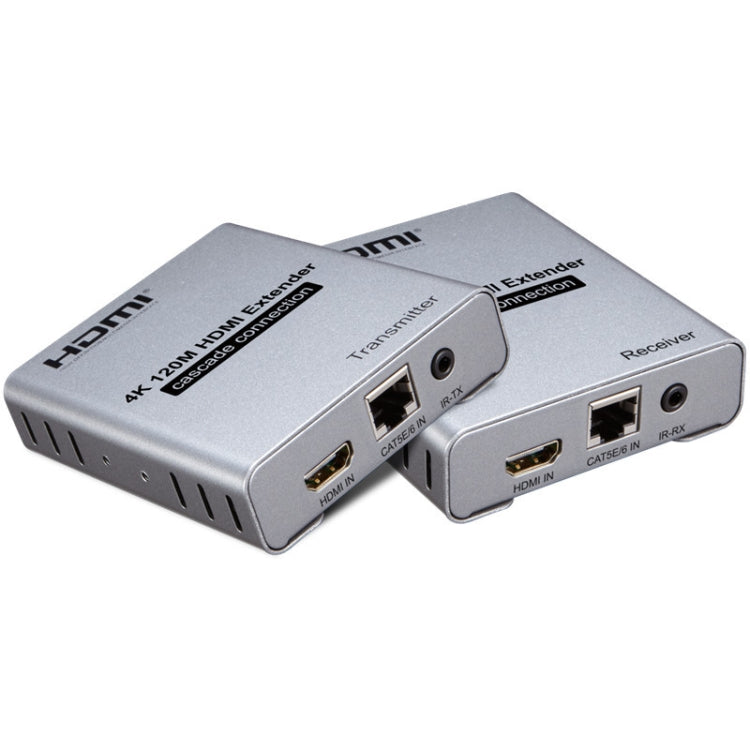

- TX transmitter x 1
- RX receiver x 1
- Infrared transmitter, receiver line x 1
- Power adapter x 2
- User manual x 1
