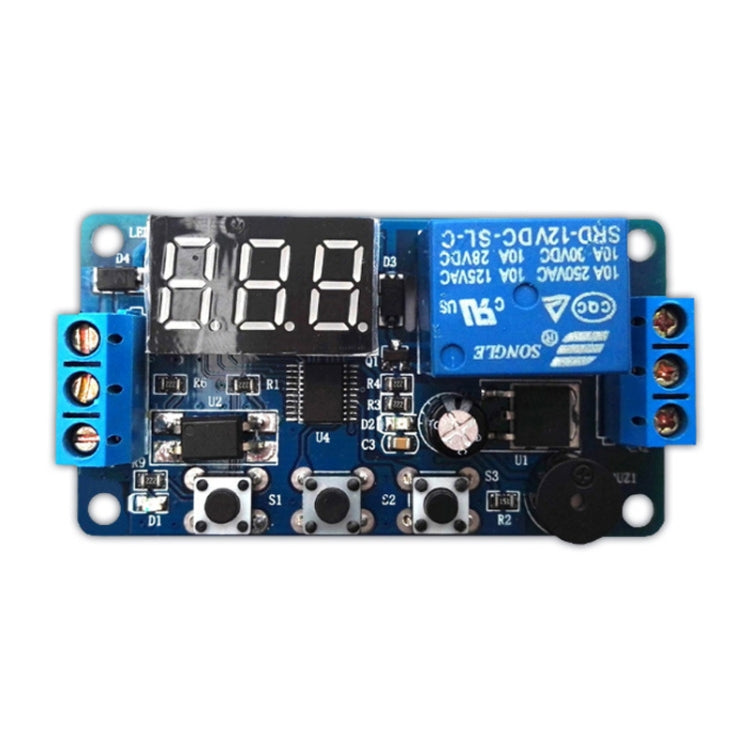

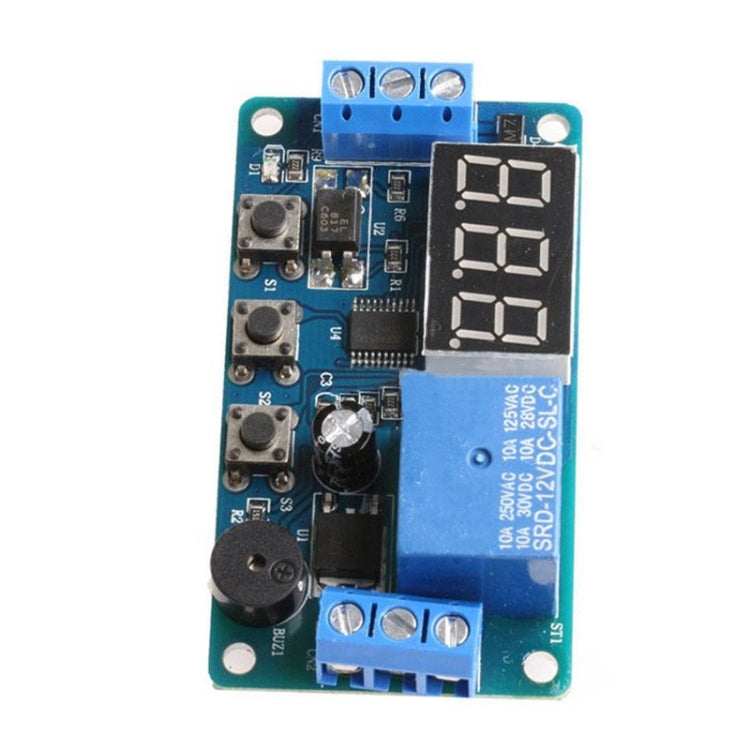

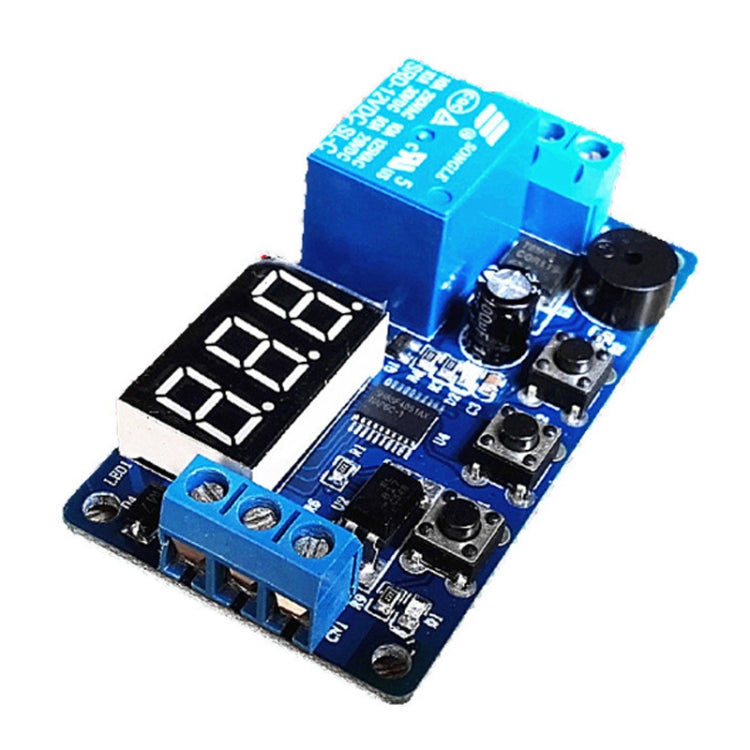

DK-C-01 Anti-Reverse Circuit Delay Relay Module DC12V Timing Delay Controller Module
DK-C-01 Anti-Reverse Circuit Delay Relay Module DC12V Timing Delay Controller Module
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

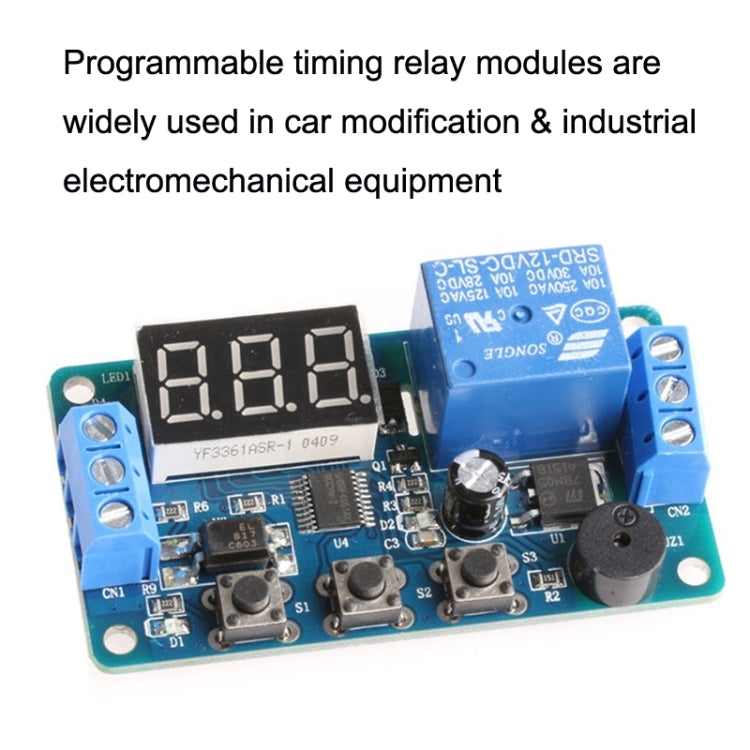

1. Programmable timing relay modules are widely used in car modification & industrial electromechanical equipment

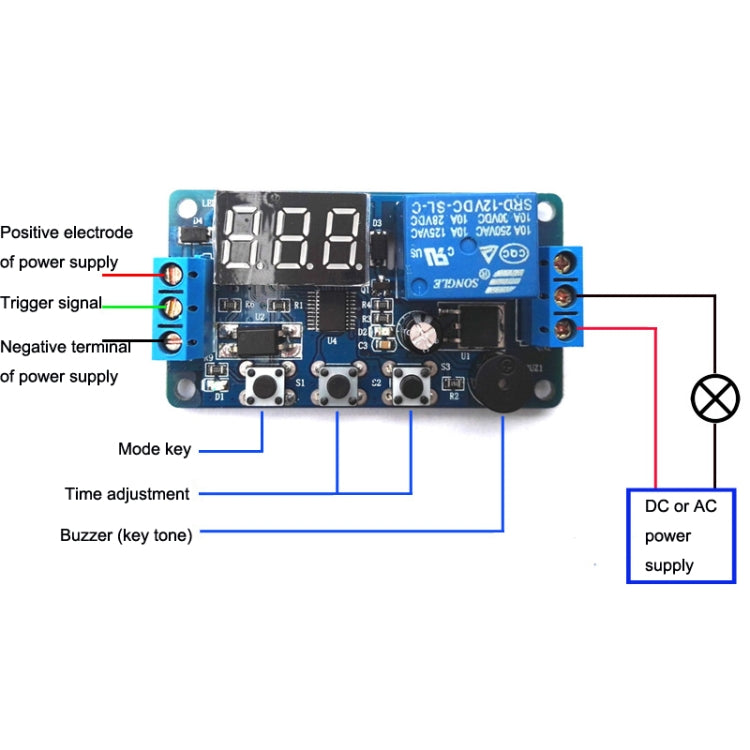

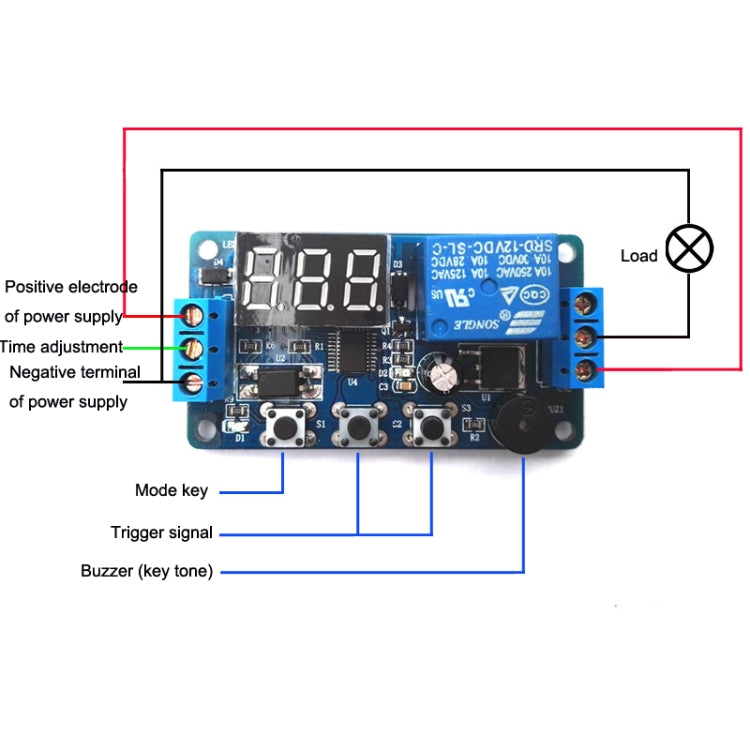

2. Voltage input anti-reverse connection circuit, worry-free wiring
3. Signal input optocoupler isolation, strong anti-interference ability
4. Set parameters for long-term memory after power off
5. Powerful FLASH MCU online programming function, according to user needs, you can contact the manufacturer to customize the required functions
6. Working temperature: -40 to 85 degrees Celsius
7. Working voltage: DC12V (normal working voltage DC1OV-16V)
8. Signal source: DC4V-20V (common power supply positive trigger, button, PNP sensor, PLC signal, etc.)
9. Output capability: It can control equipment within DC 30V5A or AC 220V5A
10. Static current: 20MA
11. Working current: 50MA
12. Service life: more than 100,000 times
13. Size: 64.2 x 34.8 x 18.5MM
14. Net weight: about 26G
Pattern introduction
- P-1: trigger received
- A1: Triggering again during the delay is invalid
- A2: Re-timing is triggered again during the delay
- A3: During the delay period, the relay is triggered again to reset and terminate the timing appliance, the Y time starts, and the relay is disconnected when the timing ends
- P-2: Receive a trigger signal, start X time, and continue when time ends
- P-3: Cycling switch mode
- A1: The relay is turned on after the power is turned on, and it is turned off when the timing is over, infinite loop
- A2: The relay is disconnected after the power is turned on, and it is connected after the timing is over, infinite loop
- P-4: After receiving the trigger signal, the relay will continue to be connected until the signal disappears and start timing. After the timing ends, the relay will be disconnected. If the trigger signal is received again during the delay period, the delay will be canceled until the signal disappears, and the timing will be restarted.
