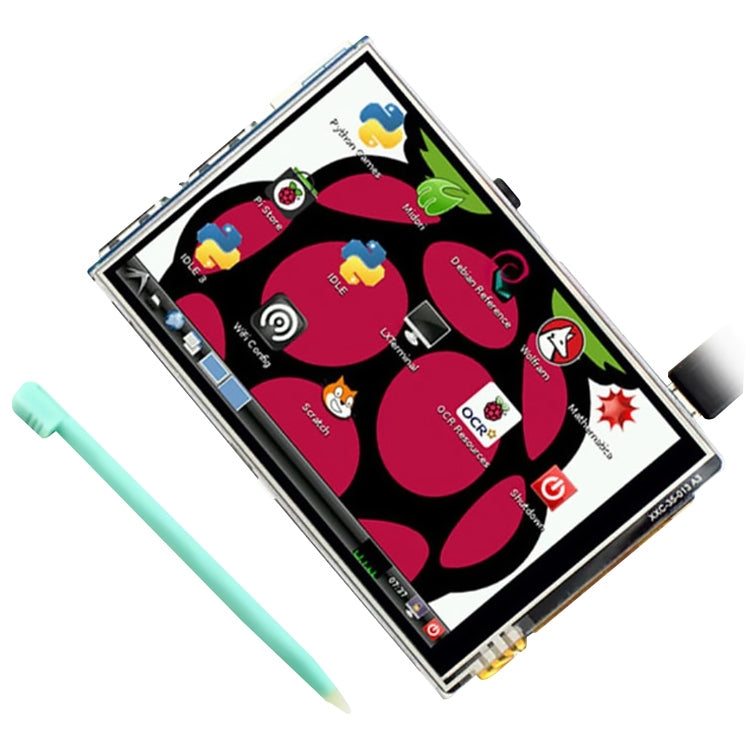

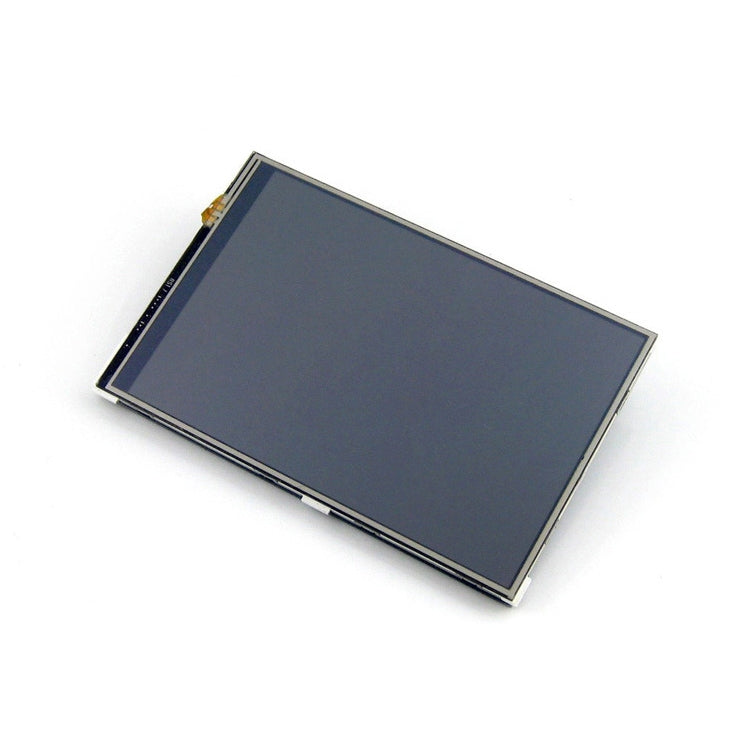

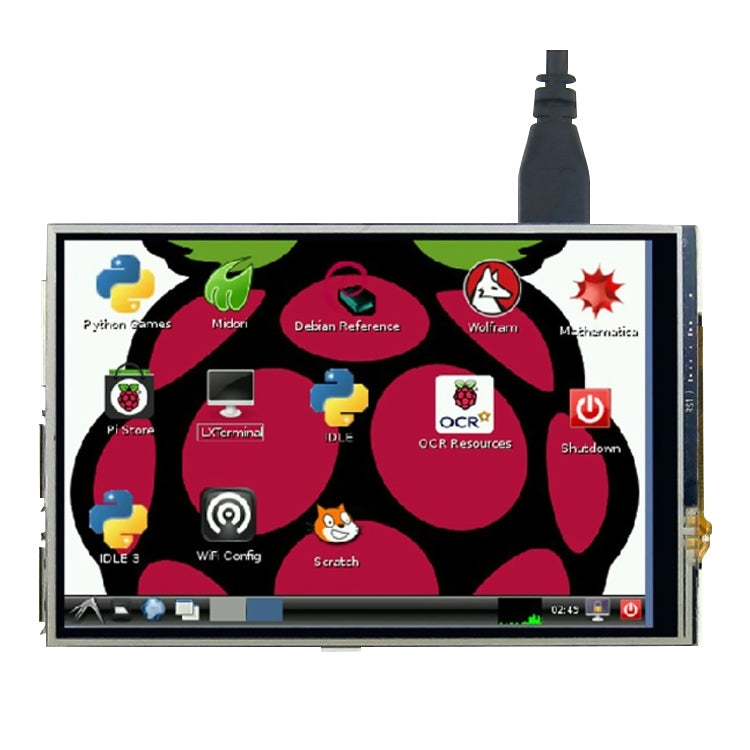

3.5 inch LCD TFT Touchscreen Display Touch Shield with Stylus Pen for Raspberry Pi

Name: 3.5 inch LCD TFT Touchscreen Display Touch Shield with Stylus Pen for Raspberry Pi
Brand: PMC Jewellery
SKU: DIY0201
Price: 459.00 ZAR
Availability: InStock

R 459.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

About the Product

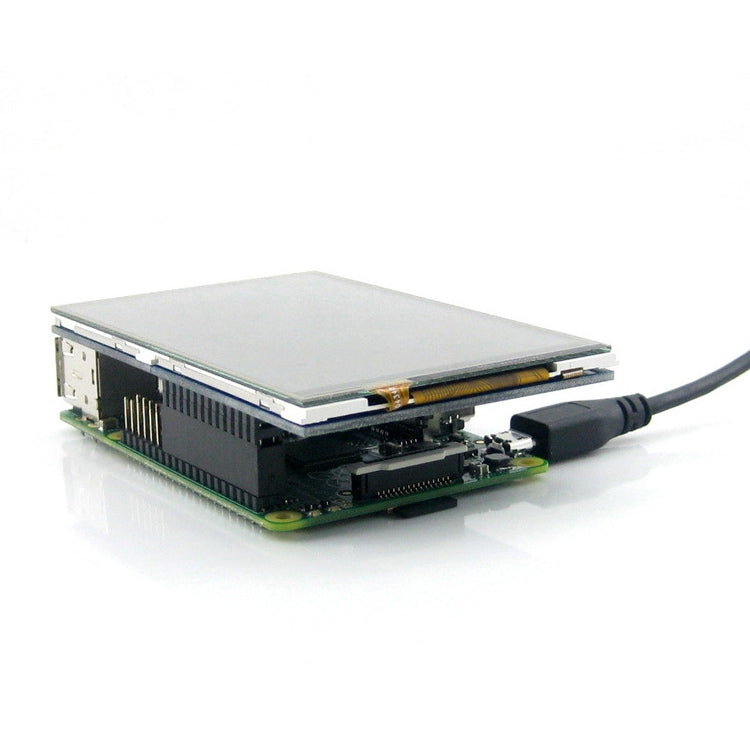

This 3.5 inch touch screen module is designed especially for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI transmission data, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime.

Features
1. LCD Interface: SPI.
2. Touch Screen Controller: XPT2046.
3. Backlight: LED.
4. LCD Type: TFT.
5. Resolution: 320*480 DOTS.
6. Core System: vision 3.18.9.
7. SPI Speed: 32MHz.
8. Color Levels Index: 65536.
9. Power Consumption/Backlight Current: TBD.
10. Supports Raspbian system, enables your system to:
- Play videos (supports multi formats, MP4 and so on).
- Take photos by touching (up to 17 camera modes).
- Support software keyboard (system interaction without keyboard/mouse).
- Support driver is installed automatically.
