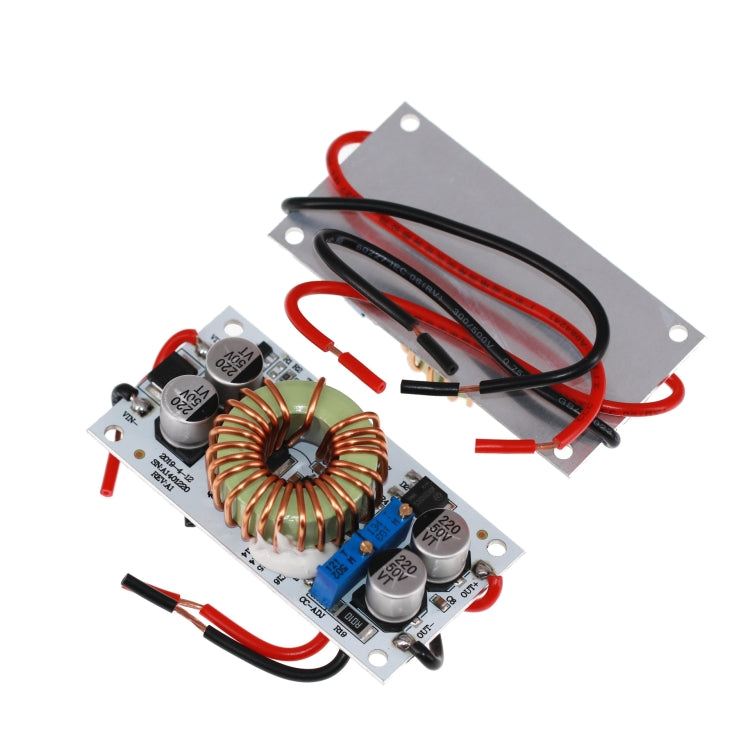

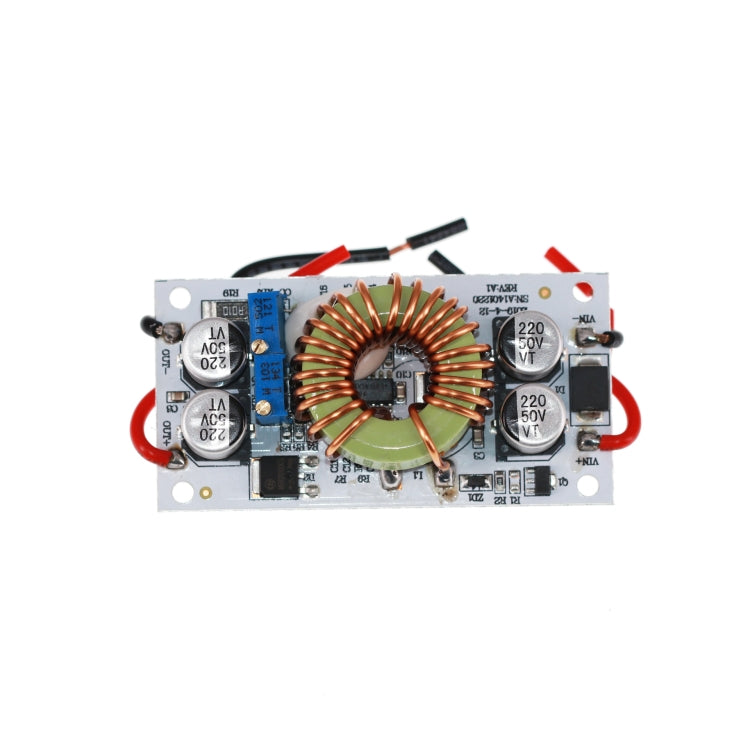

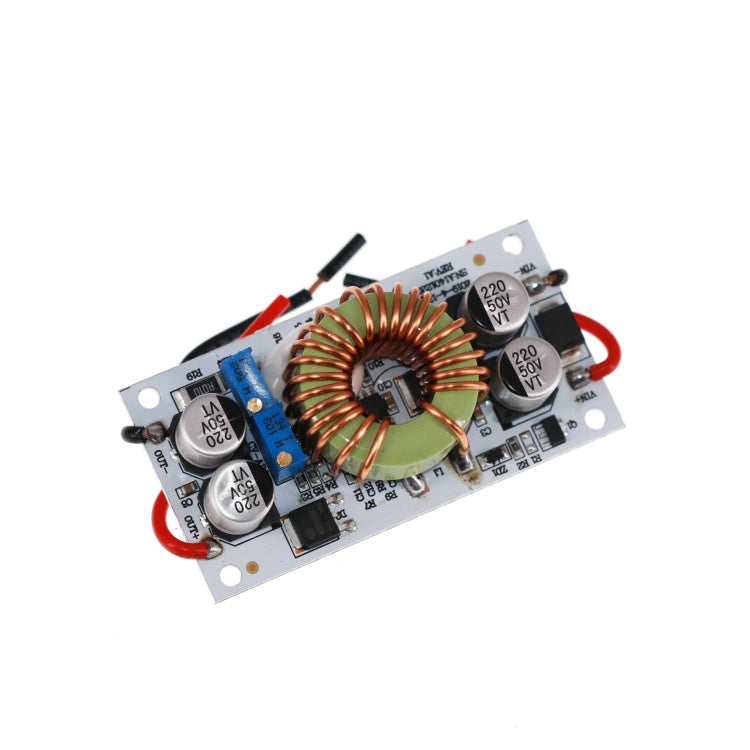

250W 10A Aluminum Substrate Power Supply LED Boost Constant Current Module

• Product type: Modules Expansions Accessories
• Compatibility: LED Boost Constant Current Module
• Material: Aluminum
• Key feature: Non-isolated boost module
• Color/Variant: Not specified
• Intended use: DIY power supply
• Category: Consumer Electronics

1. Module characteristics: non-isolated boost module (BOOST)
2. Input voltage: DC8.5V-48V
3. Input current: 10A (MAX). Please strengthen heat dissipation if it exceeds 8A.
4. Quiescent current: 10mA (when 12V rises to 20V, the higher the output voltage, the quiescent current will increase)
5. Output voltage: 10-50V continuously adjustable
6. Constant current range: 0.2-8A
7. Temperature: -40 to +85 degrees Celsius (the ambient temperature is too high, please enhance heat dissipation)
8. Working frequency: 150KHz
9. Conversion efficiency: up to 96%
10. Overcurrent protection: Yes
11. Input reverse connection protection: Yes
12. Installation method: 4 3mm screw holes
13. Wiring method: Wiring output
14. Module size: 70mm long, 36mm wide, 13mm high
15. Weight: 50 grams

Application:
1. DIY a regulated power supply, the input is 12V, and the output can be adjusted from 12-50V.
2. Power your electronic equipment and set the output value according to your system voltage.
3. As a car power supply, power your laptop, PDA or various digital devices.
4. DIY a high-power notebook mobile power supply: equipped with a large-capacity 12V lithium battery pack, your notebook can shine wherever you go.
5. Solar panel voltage stabilization.
6. Charge batteries, lithium batteries, etc.
